Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder

China Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder supplier
Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder supplier Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder supplier Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder supplier

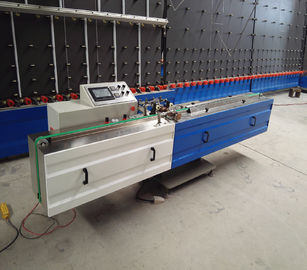

Large Image :  Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: Valid
Model Number: SBT-JT03

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Automatic PIB Butyl Extruder
Price: Negotiable
Packaging Details: Standard Export Package/Carton
Delivery Time: 3~5Days
Payment Terms: T/T
Supply Ability: 18Sets/Month Automatic Butyl Sealant Extruder,Automatic Butyl Coating Machine
Contact Now
Detailed Product Description
Machine: Automatic Butyl Sealant Extruder Model: SBT-JT03
Extrudering Speed: 28m/min Control System: PLC
Application: Double Glazing/Insulating Glass Primary Sealing

Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line

Automatic Butyl Extruder  for Insulating Glass / Double Glazing

Automatic Butyl Extruder Machine for Insulating Glass Primary Sealing,Automatic Butyl Extruder Machine

Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder

Quick Details

  • Machine Type: Insulating Glass Production Line/Automatic Butyl Extruder Machine
  • Place of Origin:  China (Mainland)
  • Brand Name:SAINT BEST
  • Model Number: SBT-JT03
  • Certification: CE
  • Butyl sealant: Insulating glass
  • butyl glue: double glass
  • butyl dispenser: double glazing
  • Input power: 4.75KW
  • Working speed: 4~40m/min
  • Adjustable range: 4~16mm
  • Overall dimensions: 3430×700×1236mm

Packaging & Delivery

Packaging Details: Standard Export Package/Wooden Crate
Delivery Detail: 5-10days

Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder

Feature:

  Automatic Butyl Extruder Machine adopts intelligent digital control system with touch screen

The aluminum spacer is held manually and the injection volume is one standard block.

The extruding sector which is designed to be horizontal can make sure the equipment works again

 only in 5 minutes after the butyl is charged.Butyl Extruder Machine,butyl extruder,butyl dispenser,

butyl applicator,hot melt butyl.It adopts two heating systems which respectively

 heat butyl cylinder and nozzle to assure the appropriate butyl temperature.The time of the appliance

on both ends is under accurate control by timing relay. It can apply butyl on curved and rectangle frames.

Touch screen, Human-Machine Interface, PLC control system.

2 It adopts German pneumatic-hydraulic pressure technology,which is produced based on

Germany technology which pressurize bilaterally with no regard that the air cylinder is back or forth.

Stainless Steel operation panel,which is easy to clean waste and beautiful.Automatic Butyl Sealant Extruder.

Free set of Heating Time(Adjustable);

Convey Speed Adjustable(Optional)

Butyl cylinder and spray nozzle automatic heating;

Automatic sleep function

The distance between nozzles is adjustable.

Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder

Paremeters:



Electric Power

2.2KW  380V  50HZ

Conveyor Speed

28m/min

Air-Pressure

0.5--0.8Mpa

Hydraulic Pressure

8—15Mpa

Heating Temperature

100——160℃

Sealant heating Time

30——40min

Distance Between Nozzles

6—20mm

Outside Dimension

3430×700×1236mm





Machine Processing


SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Butyl Extruder Machine,Automatic Butyl Extruder Machine,Automatic Butyl Coating Machine,Butyl Extruder Machine for Insulating Glass,Butyl Extruder Machine for Double Glazing.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Hot Melt Butyl Applicator,Butyl Sealant  Extruder Machine,Automatic Hot Melt Butyl Extruder Machine,Butyl Sealant Applicator,Automatic Butyl Sealant Applicator,Hot Melt Butyl Sealant Applicator.



Packaging & Shipping
Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder

SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.Hot Melt Butyl Applicator,Butyl Sealant  Extruder Machine,Automatic Hot Melt Butyl Extruder Machine,Butyl Sealant Applicator,Automatic Butyl Sealant Applicator,Hot Melt Butyl Sealant Applicator.



Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Hot Melt Butyl Applicator,Butyl Sealant  Extruder Machine,Automatic Hot Melt Butyl Extruder Machine,Butyl Sealant Applicator,Automatic Butyl Sealant Applicator,Hot Melt Butyl Sealant Applicator.

Saint Best Group always looking for long term cooperaion, not one time deal.Insulating Glass Primary Sealing Machine.Automatic Butyl Extruder Machine with Touch Screen,Automatic Butyl Extruder Machine with Touch Screen&Adjustable Speed.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Automatic Butyl Extruder Machine with Touch Screen,Automatic Butyl Extruder Machine with Touch Screen&Adjustable Speed.Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder



FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Hot Melt Butyl Applicator,Butyl Sealant  Extruder Machine,Automatic Hot Melt Butyl Extruder Machine,Butyl Sealant Applicator,Automatic Butyl Sealant Applicator,Hot Melt Butyl Sealant Applicator,Automatic Butyl Extruder Machine,Butyl Extruder Machine.

Butyl Sealant Extruder Double Glazing Equipment For Double Pane Glass Production Line,Automatic PIB Butyl Extruder
