Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line

China Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line supplier
Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line supplier Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line supplier

Large Image :  Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE
Model Number: SBT-ZJQZ-3725

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line
Price: Negotiable
Packaging Details: Standard Export Package/Wooden Crate
Delivery Time: 10~30Days
Payment Terms: T/T
Supply Ability: 100Sets/Month Semi Automatic Glass Cutting Table With Plc Control,Glass Cutting Machine,Glass Cutting Table
Contact Now
Detailed Product Description
Machine: Semi-Automatic Glass Cutting Line Model: SBT-ZJQZ-3725
Control System: PLC Max Size: 3660x2440mm
Glass Thickness: 2~15mm
High Light:

glass cutting equipment

,

cnc glass cutting machine

Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line

Performance Customized Semi Automatic Glass Cutting Machine With Plc Control

Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line

Quick Details

  • Machine Type: Glass Cutting Machine
  • Place of Origin: China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-ZJQZ-3725
  • Certification: CE
  • Glass cut: Linear cut
  • Cutters: Multi-cutters
  • Table: Air float
  • Minimum glass size: 15*15mm
  • Maximum glass size: 3660*2440mm
  • Glass thickness: 2~15mm
  • PLC: Siemens
  • Convertor: Delta

Packaging & Delivery

Packaging Details: sea-worthy package, wooden crate package
Delivery Detail: 25days

Specifications

According to customer needs, tailor-made glass cutting line, from loading,cutting,breaking shop.

This set of equipment.Applicable to hollow, toughened, home, photo frames,

curtain wall glass deep processing enterprises,the batch is especially suitable for the 2~19mm glass cutting.

1) High automation
2) Save labor
3) Optimize software, save glass material
4) High speed and high work efficiency


Introduction

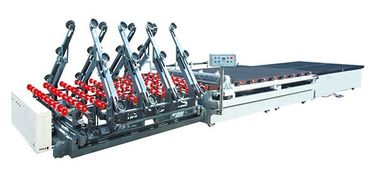

The line mainly contains three sections:

  1. SBT-QSP-3725 Automatic Glass Loading Table
  2. SBT-ZJQZ-3725 Semi-Automatic Glass Cutting Machine
  3. SBT-BQZ-3725 Glass Breaking Table

Specifications



1) High density table panel
2) Siemens PLC control
3) Air float table
4) Multi-cutters and high cut efficiency



SBT-ZJQZ-3725 Semi-Automatic  Glass Cutting Table



Characteristic

Double sides of cutters, high efficiency and high precision

Self-lubricating cutting holder

Easy removable cutting wheels

Cutting boxes interval distance manual adjustment

Auto-run available on the control panel

Both of the cutting arms return to origin after cutting work

Air float table

Controlled byfrequency converter



Mechanical parts



Name

Brand

Table surface panel

High-density waterproof panel, roughness≤±0.20mm/m (Imported material)



Electric parts:



Name

Brand

PLC

SIEMENS

Frequency changer

TECO(TaiWan)



3. SBT-BQZ-3725  Glass Breaking Machine

Air float function

High density table panel

Breaking bar: 1+2





Technical parameter:



Model

Max. glass size

Thickness

Dimensions (L*W*H)

Min. size

Weight

SBT-ZJQZ-2620

2500*1900mm

2~15mm

3248*2720*1140mm

15*15mm

1650kg

SBT-ZJQZ-3725

3660*2440mm

2~15mm

4544*3285*1140mm

15*15mm

2050kg

SBT-ZJQZ-4026

3900*2500mm

2~15mm

4980*3385*1140mm

15*15mm

2250kg

Semi Automatic Glass Cutting Machine With Plc Control,Glass Cutting Machine,Glass Cutting Line
Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery.  So we will provide the best machine for you.Automatic Glass Shape Cutting Machine With Semi-Automatic Loading Device,Automatic Glass Shape Cutting Machine,Automatic CNC Shaped Glass Cutting Machine,Shaped Glass Cutting Machine,CNC Shaped Glass Cutting Machine,Automatic Glass Cutting Machine.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.



Packaging & Shipping


SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.



Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Saint Best Group always looking for long term cooperaion, not one time deal.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.CNC Glass Cutting Machine,Automatic Glass Loading Machine,Automatic Glass Shape Cutting Line,Automatic CNC Shaped Glass Cutting Line,Shaped Glass Cutting Line,CNC Shaped Glass Cutting Line.CNC Automatic Shaped Glass Cutting Machine with Semi-Automatic Glass Loading

Cooperative  Partners



FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts,

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.
