| Layer: | 4 Layer | Machine: | 4 Layer EVA Laminated Glass Machine |
|---|---|---|---|
| Max Glass Size: | 2200x3200mm | Max Glass Thickness: | 36mm |
| Application: | Glass Curtain Wall, Skylight, Building Glass, Home Furniture Decoration, Stairs And Railings, Shower Room, Glass Windows & Doors, Indoor Partition, Solar PV Panel, PDLC/LED Laminated Glass, Coffee Table Etc EVA Laminated Glass Production | Production Capacity: | 84 Square Meter For One Cycle |
| High Light: | glass laminating equipment,eva glass laminating machine |
||
Glass Laminating Machine
-Kinds of laminated glass processing
-99% pass rate
-Only 0.5KW for one sqm
-PLC control
Basic introduction of our laminated glass machine
Our EVA laminated glass machine works on the principle of vacuum and heating. After put the glass
in the vacuum bag, the vacuum system will help exhaust the air from the vacuum bag, create a vacuum
environment in the vacuum bag. This process ensure no bubbles appear between the glasses.,EVA Glass
Laminating Heatbox,EVA Glass Laminating Furnace,EVA Glass Laminating Oven,Glass Lamination Oven for
EVA Film Process,Laminating Furnace with EVA Film for Laminated Glass.
The heating system will melt the film so that the two pieces of glasses can be firmly stick together.
The composition of our laminated glass machine
Our laminated glass machine is mainly composed of the four systems:PLC control system,heating
system,vacuum system,insulation system.
The frame of the entire machine uses 10mm thick galvanized angle steel with CO₂gas shielded
welding. The surface of the machine is treated with varnish.Combined with the unique seamless welding,
our machine has very beautiful appearance, reasonable structure,very stable and durable.EVA Film Automatic
Laminating Glass Machine,EVA Glass Laminating Machine,Vacuum Heating Machine,Laminated and Vacuum
Machine,EVA Laminated Machine for Glass.
We adopt Germany technology with newly improvement, It’s specially designed for the dry glass
laminating. The heating element is changed from carbon fiber to 304 stainless steel heating tube,
make heating up and down distributed like carpet, formed a forced convection, heat up evenly and faster, and
with longer lifetime. ONLY need 2~3 seconds for 1℃. And there turbo blower ensures hot air to circulate
every corner, temperature inside the furnace is equal and temperature difference not exceed 3~5℃. The
processing glass can get uniform heat for a high product yield. The heater wire now connected outside wall
of the furnace, this can avoid damage caused by inside high heating temperature, and easier for maintenance
of the machine.,EVA Film Laminating Machine for Glass,EVA Film Laminating Machine,Glass Laminating
Machine with EVA Film,EVA Film Glass Laminating Machine.
Glass Laminating Machine available with interlayer of EVA film, EN film,
EVA safety film, PVG film, TPU film, PDLC film, PET film ,Silk etc.

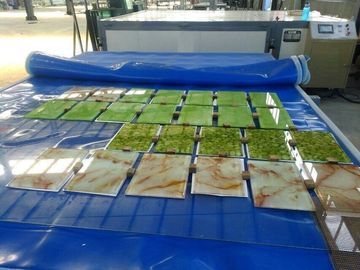

Our glass laminating machine can adopt EVA as interlayer to produce architectural laminated glass, top
grade decorative laminated glass, bulletproof laminated glass, bending tempered laminated glass,
fabric laminated glass, new energy laminated glass etc. The similar machines from other
local suppliers can do decorative lamination only. Our machine is first in China can process true flower
laminated glass.EVA Glass Laminating Heatbox /Furnace /Oven.

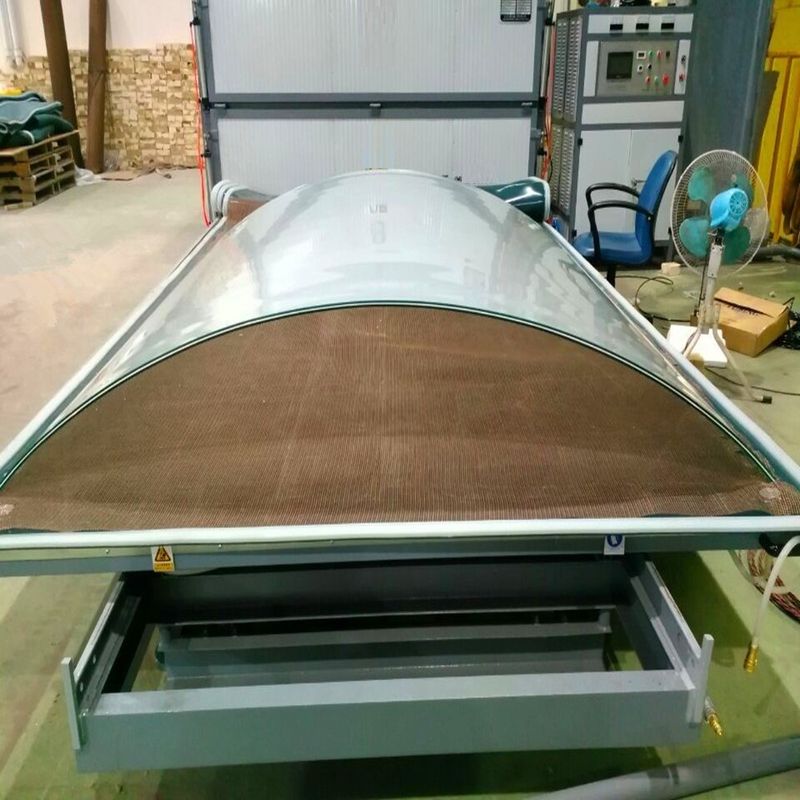

Our machine produces curved tempered laminating glass in one step, no need autoclave and
pre-pressing machine. Max bending height reaches 440mm. If you have autoclave, our
laminating glass equipment could work with it to produce curved safety glass easily and economically.
Application:
Glass Curtain wall, skylight, building glass, home furniture decoration, stairs and railings, shower
room, glass windows & doors, indoor partition, solar PV panel, PDLC/LED laminated glass,
coffee table etc.
Technical Parameter: (2200mmx3200mmx4 layers)
|
Electric Power |
(3-phase AC 220-440V)/32KW |
|
Processing Glass Size |
Max: 2200*3200mm / Min: 100*100mm |
|
|
Max bending deep(mm): 400mm |
|
|
Max glass thickness in each silicone bag: 36mm |
|
Efficiency |
Forming cycle: 75-90 Min/cycle |
|
|
Max production capacity in one cycle: 84m² |
|
|
Production capacity in 8 hours: 270m² (if 80% full furnace loaded) |
|
Operation platform |
4 layers |
|
Working Temperature |
90-180℃ |
|
Exterior Dimension |
3840*2760*1500MM |
|
Floor Space |
9500x4000mm |
|
Net Weight |
3950kg |
| Packaging Details: | WOODEN CASE |
|---|---|
| Delivery Detail: | 20 DAYS |
Spare Part:
|
Spare parts |
Brand |
Spare parts |
Brand |
|
Electrical Accessory |
SIEMENS |
Heating parts |
Stainless heating tube with radiation heating |
|
Fan |
Turbo blower Special Position |
Vacuum Bed (Silicone Bag) |
3mm thickness imported material from USA |
|
Warm-keeping layer |
8-10cm thick, stable performance |
Vacuum Pump
|
Germany design Has oil filter and air filter |
|
Motor |
China famous brand |
Gavalnized angle steel |
8mm thickness,stable |
|
PLC |
SIEMENS |
Vacuum nozzle |
Copper or stainless steel |
|
Appearance |
custom encryption composite board Baking finished. Stable |
Atomatic lifting table |
Hydropneumatic, Can stand 1.5 tons |
