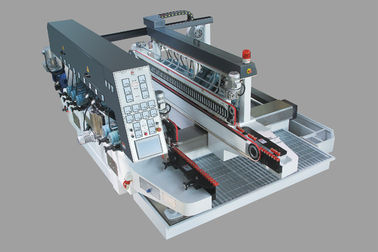

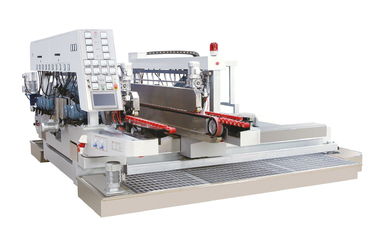

Full Automatic Straight Line Glass Edging Machine 20 Motors Customized

China Full Automatic Straight Line Glass Edging Machine 20 Motors Customized supplier
Full Automatic Straight Line Glass Edging Machine 20 Motors Customized supplier Full Automatic Straight Line Glass Edging Machine 20 Motors Customized supplier Full Automatic Straight Line Glass Edging Machine 20 Motors Customized supplier Full Automatic Straight Line Glass Edging Machine 20 Motors Customized supplier Full Automatic Straight Line Glass Edging Machine 20 Motors Customized supplier

Large Image :  Full Automatic Straight Line Glass Edging Machine 20 Motors Customized

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE/ISO9001:2008
Model Number: SBT-BYZ3025

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD35000/Set@1 Set;USD30000/Set@more than 2 sets
Packaging Details: Export Standard Package
Delivery Time: 60Days after getting prepayment;
Payment Terms: T/T
Supply Ability: 12Sets/Month
Contact Now
Detailed Product Description
Glass Edging Machine: Glass Double Edger Production Line Glass Transmission Rate: 0.5~8m/min
Glass Diagonal Error:: ±0.5mm/㎡ Thickness Of Process Glass: Standard 3~25mm
Number Of Motors: 20 Certification: CE/ISO9001:2008
High Light:

glass double edger

,

glass double edging machine

Quick Details

  • Condition: New
  • Machine Type: Glass double edger production line
  • Production Capacity: 12 sets/month
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-BYZ3025
  • Voltage: 220/380V/480 50Hz/60Hz 3P
  • Power(W): 103Kw
  • Dimension(L*W*H): 18500*10000*2800mm
  • Weight: 18000kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Grinding motor supplier: Shanghai ABB
  • Glass transmission rate: 0.5~34m/min
  • Thickness of process glass: Standard 3~25mm
  • Width of glass chamfering: 0~3mm
  • Number of motors:20
  • Error of glass chamfering width: ±0.2mm/m
  • Error of glass paralle: ±0.2mm/m
  •

Packaging & Delivery

Packaging Details: export standard package
Delivery Detail: Shipped in 60 days after payment

Product Description

SBT-BYZ3025(20 motors)



1. The first machine:SBT-BYS3020

and

2. The second machine:SBT-BYS2520



the number of motors :20 motors (depends on the customer's requirement)

the width of glass chamfering : 0~3mm

Standard Thickness :0~25mm;Super small pieces:0.8-19mm
The error of glass parallel: ±0.2mm/m

The error of glass chamfering width: ±0.2mm/m
Glass diagonal error : ±0.5mm/㎡

Width positioning error: ±0.1mm/㎡
Glass transmission rate : 0.5~8m/min

Power source:380/3ph/50Hz ( depends on the customer's requirement)

Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine

Arrangement of grinding wheels and distribution diagram of motor power

Full Automatic Straight Line Glass Edging Machine 20 Motors Customized

Arrangement of grinding wheel and distribution diagram of motor power

No.1            No.2      No.3       No.4         No.5      No.6         No.7      No.8          No.9          No.10

100#          140#       240#      10S40       240#     10S40      240#      10S40       10S40       10S60

Diamond  Diamond   Resin     Imported  Resin     Imported Resin      Imported   Imported   Imported

polishing   polishing  polishing polishing  polishing

wheel         wheel      wheel     wheel       wheel     wheel      wheel       wheel      wheel        wheel

Full Automatic Straight Line Glass Edging Machine 20 Motors Customized



Main Features

The minimal size of the common process glass is 160mm*160mm,minimal thickness 2mm.The thickest size depends on the requirements and the quality of grinding wheel..Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine,12 motors glass double pencil round edge grinding machine,14 motors glass double pencil round edge grinding machine.

This machine has the advanced structures,precision components,exquisite assembly technology,good fittings,stable property,excellent quality,easy operation and simply maintenance.

Processing glass diagonal error within 0.5 mm,parallelism error within 0.1mm,chamfering balance,clear angles,no collapse edge, round edge phenomenon.10 Motors Glass double pencil edger,8 motors Glass double pencil edger,6 motors Glass double pencil edger,12 Motors Glass double pencil edger,14 motors Glass double pencil edger.

It is suitable for processing all kinds of high-grade sealed insulating glass and appliances glass.Can be extended the laser code then identify the automatic control.Glass Straight-line Turning Table,Glass automatic Turning Table,Glass Automatic Turning Table.

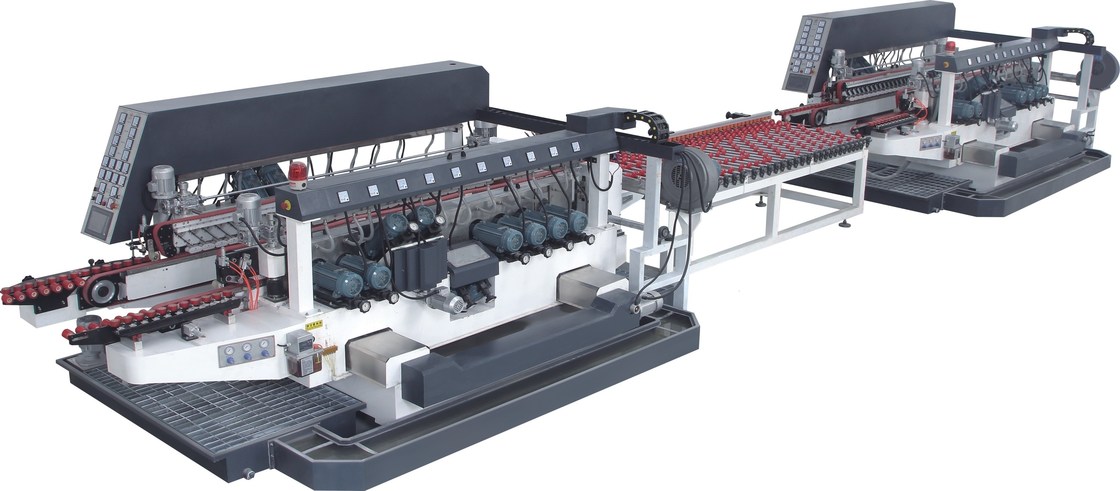

3. Straight-line transfer table (SBT-BYZ3020)



SBT-BYZ3025 straight-line consists of 2 straight line of double edger and 1 transfer table.It can grinding 4 edges one-time.The machine of combinations and grinding numbers can be according to customer requirements.This production line of structure is simple and reliable,high production efficiency,transfer glass is fast,also can saving space and workers.It suitable for industrial glass(furniture,building,household appliances industry).

.glass tempering furnace,glass double edging machine,glass straight line beveling edging machine,glass straight line edging machine,glass straight line multilevel edging machine,glass washing machine,glass drilling machine,glass irregular shape machine,glass automatic sandblasting machine,glass chamfering machine and glass automatic cutting machine,glass automatic loading machine.



Main Technical Parameters:



No. Items Parameters Remarks
1 Max glass size/mm 3000×2500 Can be customized according to customer requirements
2 Min glass size/mm 55×55



3 Thickness of glass/mm 3-25mm
4 Glass transmission rate 0.5-34 m/min
5 power 3.5 KW
6 Power source AC380V 50HZ



Full Automatic Straight Line Glass Edging Machine 20 Motors Customized

Full Automatic Straight Line Glass Edging Machine 20 Motors CustomizedFull Automatic Straight Line Glass Edging Machine 20 Motors CustomizedFull Automatic Straight Line Glass Edging Machine 20 Motors Customized

Processed Sample

Full Automatic Straight Line Glass Edging Machine 20 Motors CustomizedFull Automatic Straight Line Glass Edging Machine 20 Motors CustomizedFull Automatic Straight Line Glass Edging Machine 20 Motors Customized

Our Factory



Full Automatic Straight Line Glass Edging Machine 20 Motors Customized



Full Automatic Straight Line Glass Edging Machine 20 Motors Customized





Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Full Automatic Straight Line Glass Edging Machine 20 Motors CustomizedFull Automatic Straight Line Glass Edging Machine 20 Motors CustomizedFull Automatic Straight Line Glass Edging Machine 20 Motors Customized
