Automatic industrial glass washing machines , PLC flat glass washer

China Automatic  industrial glass washing machines , PLC flat glass washer supplier
Automatic  industrial glass washing machines , PLC flat glass washer supplier Automatic  industrial glass washing machines , PLC flat glass washer supplier Automatic  industrial glass washing machines , PLC flat glass washer supplier

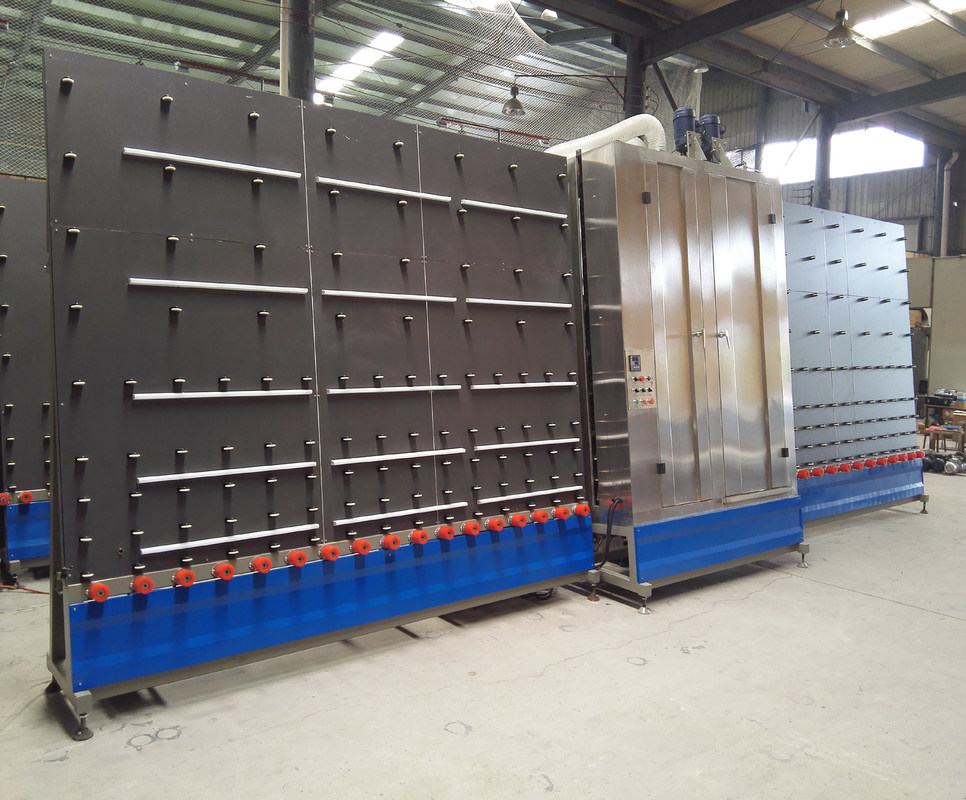

Large Image :  Automatic industrial glass washing machines , PLC flat glass washer

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: Valid
Model Number: SBT-LB1800

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package/Carton
Delivery Time: 3~5Days
Payment Terms: T/T
Supply Ability: 80Sets/Month
Detailed Product Description
Machine: Vertical Automatic Low-E Glass Washing&Drying Machine Model: SBT-LB1800
Control System: PLC Max. Glass Size: 1800x2500mm
Min. Glass Size: 200x540mm Glass Thickness: 3~12mm
Washing Speed: 2~7m/min Brushes: 3 Pairs

Automatic Vertical Low-E Glass Washing Machine

Vertical Automatic  Low-E Glass Washing&Drying Machine

Quick Details

  • Condition: New
  • Machine Type: Automatic Low-e Glass Washing Machine
  • Place of Origin: Shandong,China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-LB1800
  • Voltage: 380v
  • Power(W): 15Kw
  • Dimension(L*W*H): 7370*2100*2730mm
  • Weight: 2000kg
  • Certification: CE
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. glass size: 2500*3000mm
  • Min. glass size: 200*540mm
  • Glass washing speed: 2~7m/min
  • Work speed: 0~45m/min
  • Air pressure: 0.8m³/min
  • Glass thickness: 3~19mm
  • Power: 15Kw
  • Overall dimensions:7370*2100*2730mm

Packaging & Delivery

Packaging Details: Standard Export Package/Wooden Crate
Delivery Detail: 10-30days



Feature:
Low-E glass coating face detection
6 Low-E Soft Nylon Brushes;the brushes distances is adjustable;

The washing room have stainless water compartment flap,which avoid second glass pollution;

The drying room is equipped with Mist separation device,which will avoid oil or mist to create bright spots;

2 independent water tanks and water cycle;2 stainless steel pump;

High air press and low noise blower;

Bystronic Technology Air Knives;The air knives degree adjustable;

Whole Stainless Steel cover for washing and drying section;

Water Heating Function(Suggest use when the room temperature lower than 7 degree)

Frequency speed control

Cold light inspection for output conveyor



Technical Data:

Power: 3P 380V 50HZ  15Kw
Water: Water consumption-0.5t/h; Water conductivity: 50μs/cm
Max glass size: 1800×2500 mm
Min glass size: 200×450mm

Glass thickness: 3-12mm
Glass washing speed: 2-7m/min

Low-e Brush:6Pcs
Machine size:7370mm(L) × 2100mm(W) ×2730mm(H)





Technical Parameter:



Max. Glass Size

1800*2500mm

Min. Glass Size

200*540mm

Single glass thickness

3~15mm

Glass washing speed

2~7m/min

Work speed

0~45m/min

Air pressure

0.8m³/min (1Mpa)

Power

15Kw

Water electrical conductivity

50μS/cm

Overall dimensions

7370*2100*2730mm

Application and Features

PLC control system with whole process, touch-sensitive screen and man-machine interface.

Realize the surface layer of coated glass and LOW-E glass automatically.

The cleaning machine and washer system adopt stainless steel and anticorrosion material with all parts and it has features of super durability.Automaic Double Glazing Machine.

It adapts to clean 3 to 12 thickness glass, transmission setup of cleaning and drying part is designed automatically.Automatic Insulating Glass Machine



Performance :

The first part: Input Unit

  • Conveying/transporting glass sheets to washing and drying unit.
  • Automatic drives to pushes the glass into washing and drying unit automatically
  • Realize the surface layer of coated glass and LOW-E glass with a sensor

Washing and Drying Unit

  • stainless steel and anticorrosion material with all parts;
  • Be able to wash Low-E glass;
  • Three pairs of brushes, entire rubber rollers;
  • Drying part guaranteed by strong blower with hot air;
  • Hot water to achieve better cleaness of glass;
  • Washing - drying cabinet and blower with noise reducing devices.
  • The speed of transport can be adjusted.
  • Vertical Fully-Auto Insulating Glass Washing Machine / Low-E Glass Washing Machine

Cleaness Inspecting Unit

  • Also outletting unit after glass washing and drying;
  • With lighting tubes on this unit;
  • Inspecting whether the glass is clean or not;
  • The speed of transport can be adjusted.



Tilting Table

  • Glass sheet can be tilted to horizontal position, easy for transporting or unloading.
Machine Processing


SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Vertical Low-e Glass Washing Machine,Automatic Glass Washing Machine,Vertical Glass Washing&Drying Machine,Vertical Glass Washer.

Automatic  industrial glass washing machines , PLC flat glass washer

Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Vertical Low-e Glass Washer,Automatic Low-e Glass Washing&Drying Machine.



Packaging & Shipping


SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.

Automatic  industrial glass washing machines , PLC flat glass washer

Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Double Glazing Glass Washing Machine,Insulating Glass Washing  Machine,DGU Glass Washing Machine,IGU Glass Washing Machine.

Saint Best Group always looking for long term cooperaion, not one time deal.Double Glazing Insulated Glass Machine



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Automatic Low-e Insulating Glass Washer,Low-e Glass Washing&Drying Machine,Automatic Low-e Glass Washing Machine with Tilting Table,Vertical Automatic Glass Washing Machine.



Cooperative  Partners

Automatic  industrial glass washing machines , PLC flat glass washer

FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Vertical Glass Washing Machine,Vertical Low-e Glass Washing Machine.

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.Glass Washing Machine,Low-e Glass Washing Machine.



Automatic  industrial glass washing machines , PLC flat glass washerAutomatic  industrial glass washing machines , PLC flat glass washerAutomatic  industrial glass washing machines , PLC flat glass washer
