| Name: | Semi-Automatic Glass Horizontal Drilling Machine | Model: | Horizontal |
|---|---|---|---|
| Control System: | PLC | Application: | Furniture Glass CNC Drilling,Shower Room Door CNC Drilling,Architecture Glass CNC Drilling,Balcony Glass CNC Drilling,Stair Armrest Glass CNC Drilling,Sightseeing Glass CNC Drilling,Truck Glass CNC Drilling,Door Glass CNC Drilling, |
| High Light: | automated drilling machine,deep hole Drilling Equipment |
||

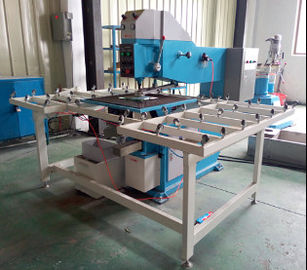

Semi-Automatic Glass Horizontal Drilling Machine
Glass Horizontal Drilling Machine
I. General description:
1. Lower drilling bit is controlled by a cylinder while the upper bit is operated by manual.
2. Different sizes of holes can be drilled with different diameters of bits.
3. High working efficiency and easy operation
4. Automatic controlling is optional, which means both of the lower and upper drilling bits are fed by
cylinder.
II. Technical Parameters
1. Hole Diameter: φ5~φ130 (φ220) mm
2. Glass thickness: 4 ~19 mm
3. Max. Processing width: 2400mm
4. Size: 2200×2500×1700mm
5. Weight: 1200KG
6. Power: 4.95Kw
Why choose Saint Best products??
1. Saint Best product is widely used in almost all the materials which you can think of.
2. Saint Best machine with high precision and high reputation is the most reliable goods you can choose.
3. Saint Best company has all kinds machines in store, the delivery time is much shorter than other companies.
4. Guarantee the complete machine for 12 months, except the consumable parts.
5. Saint Best company has international tech service office and provides 24 hours online service and tech support for customers.
Services
The engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.
We always looking for long term cooperation, not one time deal.
Packing & Shipping
Demac produce high quality machines, also pay attention to package. Wooden case, pallet, and special package to make sure customer will receive the machines they ordered intact.
