Product Details:
Payment & Shipping Terms:
|
| Glass Edger And Polisher: | Glass Straight Line Glass Edging Machine | Thickness Range: | 3~25mm |
|---|---|---|---|
| Control System: | PLC | Spindle Quantity: | 9 |
| Grinding Straight Line Flat Edging: | Vertical Grinding Straight Line Flat Edging | Vertical Glass Edger And Polisher: | Automatic Glass Edger And Polisher |
| High Light: | glass double edger,glass double edging machine |
||

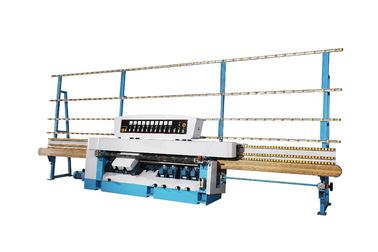

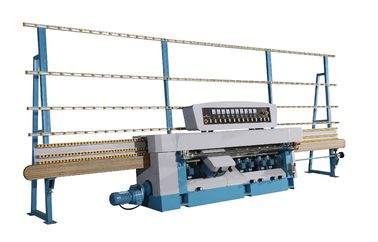

PLC OGEE Glass Beveling Equipment , Glass Processing Plant With Pneumatic Polish System
PLC OGEE Bevel edge Glass machine with Pneumatic Polish system / Glass Straight Line Edging Grinding Machine with 9 Spindles
Glass Edger and Polisher / Glass Straight Line Glass Edging Machine
Automatic Glass Straight Line Glass Edging Machine / Vertical Glass Edger and Polisher
Basic Info.
| Packaging Details: | plastics and wooden supporter.Suitable package for sea transportation. |
|---|---|
| Delivery Detail: | 30 days after deposit. |
I. General Description:
1. SBT-XZM9 is suitable for processing straight-line edge & 45° arrises on glass.
2. A special design of the in-feed section for controlling the grinding amount of glass without adjusting each
spindle individually.
3. Independent wool felt wheel and the cerium water recirculation system make the flat edge more shining.
4. Input and output conveyors adopt timing belt which can improve the stability of transmission. And the
timing belt is easy to replace during maintaining.
5. Perfect oil supply system makes sure smooth lubrication.
6. Beam is iron casting and processed by CNC processing center. Double-annealing makes it durable and no deformation.
7. Speed is adjusted by stepless speed variator (standard) or frequency inverter.
8. Water tank is stainless steel.
9. Different options: Manual, Digital display, PLC with pneumatic polishing.
10. Nine spindles totally: 5 for the straight-line edge (adopt the independent wool felt wheel),
2 for front arris and 2 for back arris.
II. Technical Data
1. Processing glass thickness: 3-25mm
2. Angle of arris: 45°
3. Min.size of glass: 80mm×80mm
4. Processing speed: 1.2-6.0m/min(variator), 0.8-5.5m/min (frequency inverter)
5. Installed power 19KW
6. Occupation of land: 7m×1.4m×2.5m
III. Wheels position as per requirement: (From input to output end)
|
No. |
Name |
Function |
|
No.1 |
Diamond wheel |
Rough grinding of flat edge |
|
No.2 |
Diamond wheel |
Semi-fine grinding of flat edge |
|
No.3 |
Resin wheel |
Fine grinding of flat edge |
|
No.4 |
Fine grinding wheel |
Polishing of flat edge |
|
No.5 |
Resin wheel |
Semi-fine grinding of back arris |
|
No.6 |
Fine grinding wheel |
Fine grinding of back arris |
|
No.7 |
Resin wheel |
Semi-fine grinding of front arris |
|
No.8 |
Fine grinding wheel |
Fine grinding of front arris |
|
No.9 |
Wool felt wheel |
Polishing of flat edge |
Before Sale:
Free professional design for each customer especially.
After sale service :
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment Terms :
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal
A,12month warranty
B,1%-2% spare parts
C, OEM&ODM are welcomed
D,Trail orders are available
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Vertical Glass edge refine grinding machine with 9 spindles,Glass edging Polisher machinery,
PLC+Touch Screen controlled Glass miltering edge equipment,Glass straight line arrise machine with Automatic
Thickness adjust.
Saint Best Group always looking for long term cooperaion, not one time deal.Double Bevel edge Glass machine with air driven Polishing device,Glass DOG edge cutting grinding polish
machine,Multi-angle Chamfering machine with flat edge glass machinery,
Glass arrise edge machinery glass melting furnaces used.
Our Advantage:
Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.glass edges polishing machine with flat edges grinding,Laminated glass straight line edging
grinding machine with 9 spindles,OGEE Bevel edge Glass machine with Pneumatic Polish system.
1. Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
3.Question:Why your price is higher than another company or factories ?
Answer: please check, what is is the differences of the machine of parts ,service and guarantee,especially the machine inner electric parts.Miter edge Glass machine with air Polishing+ Electrical Rail Lift system,
Rough Edge grinding glass machine for Architecture Glass.
sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,
but we use the famous and reliable parts for the machines inside.Insulating Glass Production Line
Glass Crude Grinding before Temper Furnace,Glass Crude Grinding Machine for Temper Furnace,Pneumatc
Polish arris glass machine.
