| Automatic Glass Sandblasting Machine: | Glass Sandblasting Machine | Max Height: | 2500mm |
|---|---|---|---|
| Control System: | PLC | Thickness Range: | 5~50mm |
| Glass Automatic Sandblasting Machine: | Vertical Automatic Glass Sandblasting Machine | Vertical Glass Sandblasting Machine: | Automatic Vertical Glass Sandblasting Machine |
| Speed: | 12-15m²/H | ||
| High Light: | glass double edging machine,double edger machine |
||
Professional Auto Glass Edging Machine , Vertical Sandblasting Glass Equipment

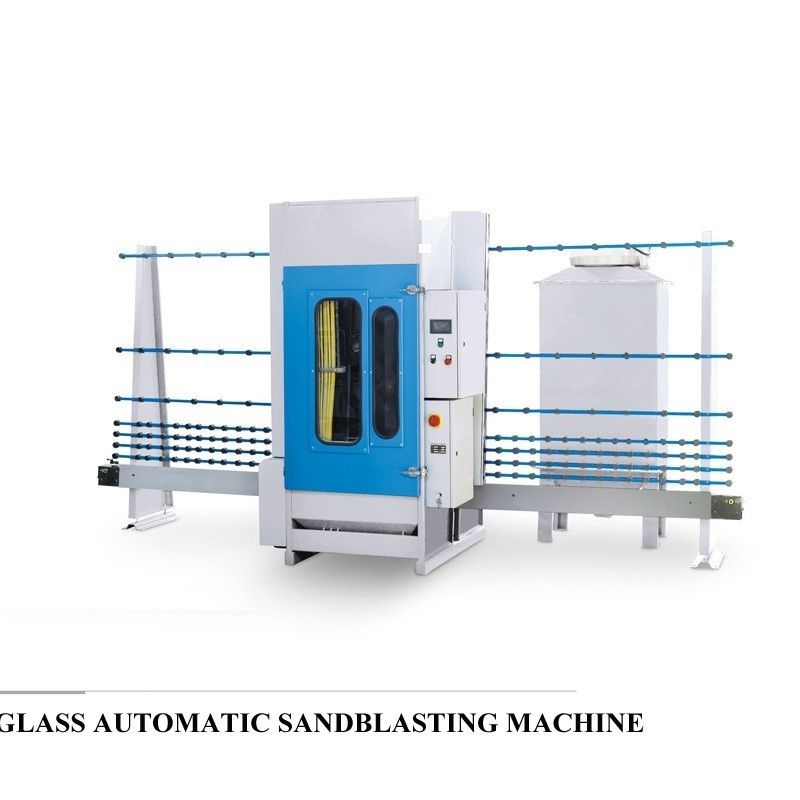

Automatic Glass Sandblasting Machine / Glass Sandblasting Machine
Vertical Automatic Glass Sandblasting Machine / Automatic Glass Sandblatser
Basic Info.
| Packaging Details: | plastics and wooden supporter.Suitable package for sea transportation. |
|---|---|
| Delivery Detail: | 30 days after deposit. |
The machine is suitable for processing 5-50mm thickness of flat glass which is conveyed by belts.
Product description:
1. It is equipped with three automatic sandblasting guns, controlled by programs. And it is capable of continuously automatic sand blasting on glass.
2. The machine is also equipped with one manual sandblasting gun, which can be used for sand blasting of single piece by manual.
Technical parameters:
1. Size (length×width×height):
(1) 1500mm: 7400×1500×2300mm
(2) 2000mm: 7400×1500×2780mm
2. Height of conveyor: 550mm
3. Min.processing size: 300*300mm
4. Max processing size:
(1) 1500*3000mm (2)2000*3000mm
5. Height of processing glass:
(1)1500mm (2)2000mm
6. Speed for sandblasting: 12-15 m2/h
7. Air source of exterior:
Air pressure: 0.6~0.8Mpa
Air output: 5m3/min
1m3 gas storage and purifying equipment for compressed air are needed.
8. Total power: 3.5kw
Product detail:
| Model | SBT-1600P | SBT-2000P | SBT-2500P |
| Max. height | 1600mm | 2000mm | 2500mm |
| Min. size | 200*200mm | 200*200mm | 200*200mm |
| Thickness | 5-50mm | 5-50mm | 5-50mm |
| Speed | 12-15m²/h | 12-15m²/h | 12-15m²/h |
| Power | 3.5kW | 3.5kW | 3.5kW |
| Overall size | 4700x1500x2300mm | 6800x1500x2800mm | 6800x1500x3300mm |
| Weight | 1300kg | 1500kg | 1500kg |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ |
Before Sale:
Free professional design for each customer especially.
After sale service :
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment Terms :
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal
A,12month warranty
B,1%-2% spare parts
C, OEM&ODM are welcomed
D,Trail orders are available
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.PLC Control Automatic Glass Sandblaster,Sandblasting Equipment for Glass.
Saint Best Group always looking for long term cooperaion, not one time deal.
Our Advantage:
Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Automatic Horizontal Glass Seaming Machine,Automatic Four Side Glass Edger.
FAQ
1. Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
3.Question:Why your price is higher than another company or factories ?
Answer: please check, what is is the differences of the machine of parts ,service and guarantee,especially the machine inner electric parts.Automatic Glass Sandblasting Machine,Glass Sandblasting Machine,Glass Automatic Sandblasting Machine.
sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,
but we use the famous and reliable parts for the machines inside.Glass Sand Blasting Machine,Flat Glass Sandblasting Equipment.
