Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting

China Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting supplier
Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting supplier Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting supplier Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting supplier Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting supplier

Large Image :  Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE
Model Number: SBT-BP-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Breaking machine
Price: Negotiable
Packaging Details: Standard Export Package/Wooden Crate
Delivery Time: 10~30Days
Payment Terms: T/T
Supply Ability: 100Sets/Month Automatic Mosaic Glass Ram Breaking Machine with Typesetting,Mosaic Glass Automatic Breaking machine
Contact Now
Detailed Product Description
Process Material: Glass Mosaic/mosaic Glass Machine: Automatic Ram Mosaic Glass Breaking Machine With Automatic Typesetting
Model: SBT-BP-600 Breaking Speed: 40-600 M2/Day
Max Size: 30x30mm Glass Thickness: 3~12mm
High Light:

glass cutting equipment

,

cnc glass cutting machine

Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting

Automatic Mosaic Glass Breaking Machine with Automatic Typesetting

Automatic Punch Mosaic Glass Breaking Machine with Typesetting

Automatic Mosaic Glass Breaking Machine

Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting

Quick Details

  • Machine Type: Glass Cutting Machine
  • Place of Origin: China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-BP-600
  • Certification: CE
  • Glass cut: Linear cut
  • Cutters: Multi-cutters
  • Minimum glass size: 15*15mm
  • Maximum glass size:30*30mm
  • Glass thickness:2~6mm

Packaging & Delivery

Packaging Details: sea-worthy package, wooden crate package
Delivery Detail: 25days

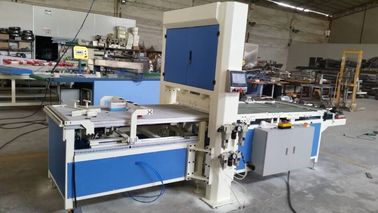

SBT-BP -600 Automatic Mosaic Glass Breaking Machine has advanced technology,

low carbon,environmental friendly,high efficiency,easy to operate and can operate

many machines at the same time by one people etc advantages;It had get rid of the

 shortcomings of traditional one people one machine and braking mosaic glasses

 one by one etc low efficiency.

 1 High Efficiency and stable production (40-80M2/8 Hours);
 2 Easy to operate,all glass particle surfaces very smooth,lower breakage;
 3 Breaking Thickness:3-12mm;
 4 Min Mosaic Glass Breaking Size:15mmX15mm;
 5 Small,fast,and flexible;Take small space,easy to operate;

 6 It can adjust the breaking size at anytime;
 7 SIEMENS PLC Control System and Japan PANASONIC Servo Driver can

grantee the product quality;
 8 All parameters displayed on Control Panel,it is easy to browse and change;

 9 It can automatic typesetting;

Parameters:

Finished Glass Size

Glass Size(MM)

Time/Breaking

Pcs/Breaking

M2/8 Hours

15*15*8

488*457*8

1Minuts 40Seconds

2025Pcs

69M2

960Pcs

74M2

23*23*8

488*457*8

1Minuts

437Pcs

110M2

25*25*8

488*457*8

342Pcs

102M2

48*48*8

488*457*8

20 Seconds

90Pcs

497M2

Oversize(LxWxH)

Thickness

Input Speed

Weight

Power

Air Pressure

Voltage

3500×1800×1800mm

3-12mm

40-600 M2/Day

1600kg

2Kw

0.4-0.8Pa

380V 50Hz

Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting

Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery.  So we will provide the best machine for you.Automatic Glass Shape Cutting Machine With Semi-Automatic Loading Device,Automatic Glass Shape Cutting Machine,Automatic CNC Shaped Glass Cutting Machine,Shaped Glass Cutting Machine,CNC Shaped Glass Cutting Machine,Automatic Glass Cutting Machine.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.

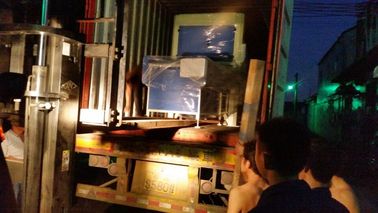

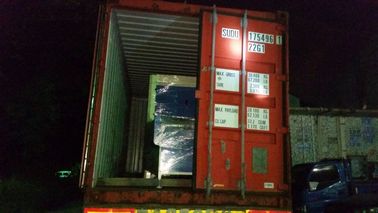

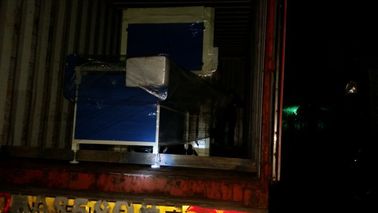

Packaging & Shipping


SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.



Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Saint Best Group always looking for long term cooperaion, not one time deal.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.CNC Glass Cutting Machine,Automatic Glass Loading Machine,Automatic Glass Shape Cutting Line,Automatic CNC Shaped Glass Cutting Line,Shaped Glass Cutting Line,CNC Shaped Glass Cutting Line.CNC Automatic Shaped Glass Cutting Machine with Semi-Automatic Glass Loading

Punch break machine with typesetting for glass mosaic,Automatic Mosaic Glass Ram Breaking Machine with Typesetting



FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts,

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.
