SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment

China SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment supplier
SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment supplier SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment supplier SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment supplier SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment supplier

Large Image :  SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: Valid
Model Number: SBT-LB2210W

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package/Carton
Delivery Time: 3~5Days
Payment Terms: T/T
Supply Ability: 80Sets/Month
Contact Now
Detailed Product Description
Machine: Insulating Glass Production Line Model: SBT-LB2210W
Control System: PLC Production Capacity: 900units/day
Max. Glass Size: 2200x3000mm Min. Glass Size: 200x540mm
IGU Glass Thickness: 12~50mm
High Light:

double glazing glass machine

,

insulated glass machinery

SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment

Insulating Glass Machine / Double Glazing Machine

Automatic Vertical Insulating Glass Production Line 2200x3000mm

SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment

Quick Details

  • Condition: New
  • Machine Type: Insulating Glass Production Line
  • Production Capacity: 900units/day
  • Place of Origin: Shandong,China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-LB2210W
  • Voltage: 380v
  • Power(W): 21.55Kw
  • Dimension(L*W*H): 21400*2100*3100mm
  • Weight: 3800kg
  • Certification: CE
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. glass size: 2200*3000mm
  • Min. glass size: 200*540mm
  • Single glass thickness: 3~15mm
  • IGU glass thickness: 12~50mm
  • Glass washing speed: 0~8m/min
  • Work speed: 0~45m/min
  • Air pressure: 0.8m³/min
  • Glass thickness: 3~19mm
  • Power: 21.55Kw
  • Overall dimensions:21400*2100*3100mm

Packaging & Delivery

Packaging Details: Standard Export Package/Wooden Crate
Delivery Detail: 10-30days

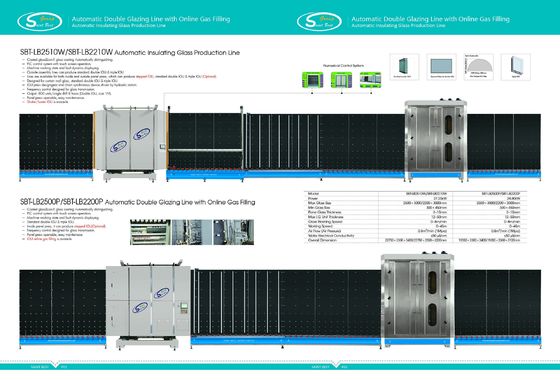

SBT-LB2210W Automatic Insulating Glass Production Line



(Outside panel glass assembly, rack and pinion press)





Characteristic:



-          Automatic distinguish film of low-e glass and coated glass



-          PLC control system, touch screen operation



-          Stepped insulating glass and triple insulating glass are available



-          Rack and pinion panel press section



-          Frequency speed control for glass transmission



-          Output: 800~1000 IG units per shift (Double glazing IGU, size 1M)





Technical Parameter:



Max. Glass Size

2200*3000mm

Min. Glass Size

200*540mm

Single glass thickness

3~15mm

IGU glass thickness

12~50mm

Glass washing speed

0~8m/min

Work speed

0~45m/min

Air pressure

0.8m³/min (1Mpa)

Power

21.55Kw

Water electrical conductivity

50μS/cm

Overall dimensions

21400*2100*3100mm

Application and Features

PLC control system with whole process, touch-sensitive screen and man-machine interface.

Realize the surface layer of coated glass and LOW-E glass automatically.

The cleaning machine and washer system adopt stainless steel and anticorrosion material with all parts and it has features of super durability.Automaic Double Glazing Machine.

It adapts to clean 3 to 12 thickness glass, transmission setup of cleaning and drying part is designed automatically.Automatic Insulating Glass Machine

SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment

Performance :

The first part: Input Unit

  • Conveying/transporting glass sheets to washing and drying unit.
  • Automatic drives to pushes the glass into washing and drying unit automatically
  • Realize the surface layer of coated glass and LOW-E glass with a sensor

Washing and Drying Unit

  • stainless steel and anticorrosion material with all parts;
  • Be able to wash Low-E glass;
  • Three pairs of brushes, entire rubber rollers;
  • Drying part guaranteed by strong blower with hot air;
  • Hot water to achieve better cleaness of glass;
  • Washing - drying cabinet and blower with noise reducing devices.
  • The speed of transport can be adjusted.

Cleaness Inspecting Unit

  • Also outletting unit after glass washing and drying;
  • With lighting tubes on this unit;
  • Inspecting whether the glass is clean or not;
  • The speed of transport can be adjusted.

Aluminum Spacer Assembly Unit

  • used to load aluminum spacer bar;
  • The first glass goes into the panes pressing unit first;
  • Loading the spacer bar on the second glass;
  • Locating blocks make the placement of spacer easier.

Panel Pressing Unit

  • Press the two sheets of glass with spacer together;
  • Can make step glass;
  • Inputting, outputting, panel pressing, all automatically;
  • Parameters can be changed easily through the touch screen;
  • Press presssure can be adjusted.
  • Capable of doing double and triple glazed units

Tilting Table

  • Glass sheet can be tilted to horizontal position, easy for transporting or unloading.SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment
Machine Processing


SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Automatic Double Glazed Production Line,Automatic Insulated Glass Production Line,Insulating Glass Machine,Double Glazing Machine.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Double Glazed Machine,Insulated Glass Machine.



Packaging & Shipping


SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.



Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Double Glazing Machine,Insulating Glass Machine,DGU Machine,IGU Machine.

Saint Best Group always looking for long term cooperaion, not one time deal.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Automatic Low-e Insulating Glass Machine,Automatic Triple Glazing Production Line,Automatic Triple Insulating Glass Production Line,Automatic Stepped Insulating Glass Production Line.

SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment





FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Vertical Glass Washing Machine,Vertical Low-e Glass Washing Machine.

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.Glass Washing Machine,Low-e Glass Washing Machine.

SBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing EquipmentSBT-LB2210W Insulating Glass Production Line ,Double Glazing Machine,Insulating Glass Equipment,Double Glazing Equipment
