Payment & Shipping Terms:
|Insulating Glass Machine:||Insulating Glass Production Line||Max Glass Size:||2500x5000mm|
|Insulated Glass Production Line:||Insulated Glass Machine||Max Thickness:||60mm|
|Double Glazing Equipment:||Double Glazing Machine||Low-e Insulating Glass Machine:||Low-e Double Glazing Equipment|
double glazing glass machine,
insulated glass machinery
|Packaging Details:||Vertical Insulating Glass Machine Production Line
After packing wrapping film then load into container
|Delivery Detail:||Shipped in 30 days after payment|
|Application and Features >>|

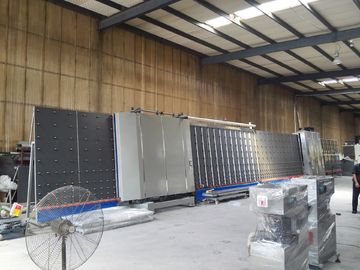

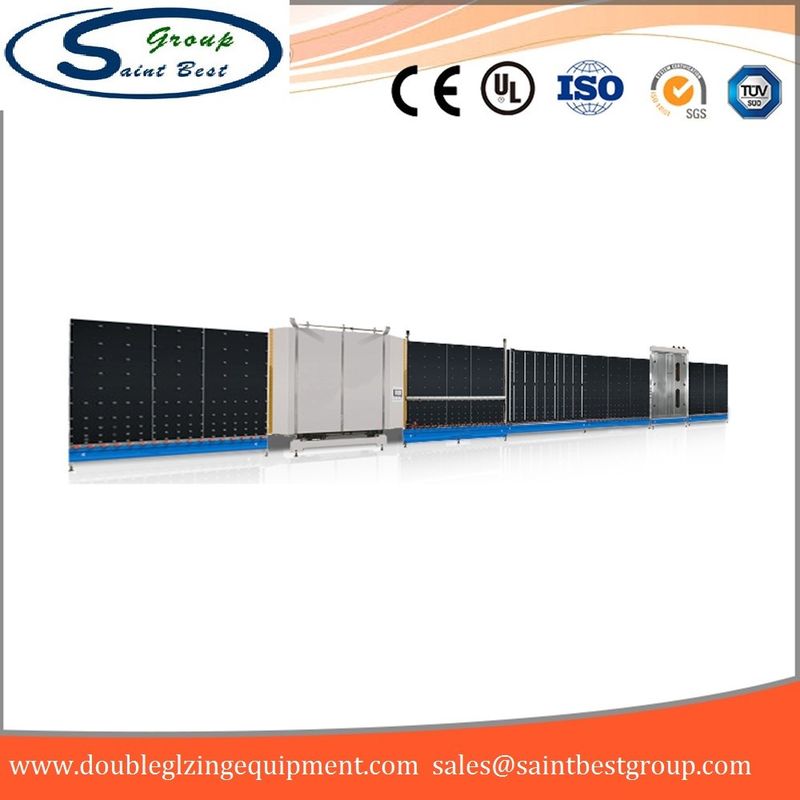

Vertical Insulating Glass Machine Production Line is a completely automatic insulating glass production line (can produce LOW-E insulating glass).
1. Automatically distinguish the coating side of coated glass and low-E glass.
2. PLC control system with touch screen operation.
3. Machine work and fault dynamic display.
4. Outside assembly lines can produce standard double layer IG and three layers IG.
5. Lines are available for both of inside and outside panel press, which can produce stepped IG, standard double layer IG and three layers IG (optional).
6. Designed for curtain wall glass, double layer IG and three layer IG glass.
7. IG press design-gear and chain synchronous device driven by hydraulic station.
8. Frequency control designed for glass transmission.
9. Output: 800 units-single shift 8 hours (double layer IG, size 1m).
10. Panel press open able, easy for maintenance.
1. Power: 27.25kw
2. Max. glass size: 2500*3000
3. Min. glass size: 200*450mm
4. Pane glass thickness: 3-15mm
5. Max. IG unit thickness: 12-50mm
6. Glass washing speed: 0-8m/min
7. Working speed: 0-45m
8. Air soure (Air pressure): 0.8m3/min (1Mpa)
9. Water electrical conductivity: ≤50 uS/cm
10. Overall dimension: 22750x2300x3400mm

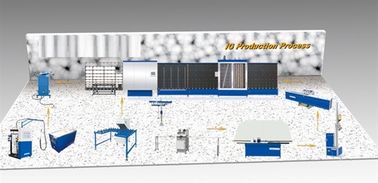

|Procesing details >>|

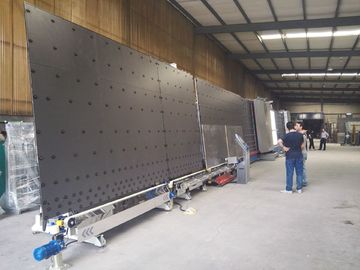

The first part: Input Unit

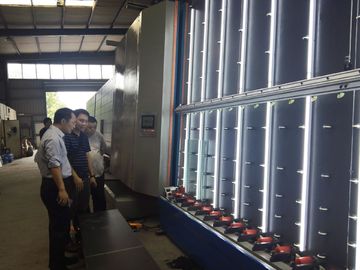

Washing and Drying Unit
Cleaness Inspecting Unit
Aluminum Spacer Assembly Unit
Panel Pressing Unit
|Machine processing >>|
SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.
Packing & Delivery
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
WHY YOU CHOOSE US Question AND Answer
1.Question:Are your manufacture?
We are manufacture of the PVC/UPVC/Plastic/Vinyl window door machine, Aluminum window door machines, Insulating glass machines.
2.Question:What’s the customer service?
1).Reply within 12 hours.
2).One to one service.
3).24 hours for after-sale service.
4).More than 15 years experience in this field.
5).Fluent English, communication barrier free.
3.Question:What’s the guarantee?
1).Our guarantee for 2 years.
2).24 hours technical support by email or calling.
3).English manual and video tutorial.
4).2 years quality guarranty for the machine (excluding the consumables).
5).We will provide the consumable parts at an agency price.
6).24 hours on line service each day, free technical support.
4.Question:If your price is higher than another company or factory?
Please check, what is is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years. We believe that you will choose the true quality long lifetime machine, not cheaper machine.
5.Question:How long is the delivery time?
For standard machines, it will take 1-15 days. (Some machines, such as the lock hole milling machine, end milling machine or glass edge polishing machine or butyl extruder machine etc., these common models machines, if you buy separate machine, we can delivery within 1-7 days after get your deposit, it depends on different model; If your order machines are enough a container to load or you order the whole production line machines, we can delivery within 10-15 days.)
For non-standard machines and customized machines according to clients specific requirements, it will take 15 to 30 days. (If the machines that customer ordered are very special, we will take long time to make the machine specially, it will take 15-30 days, this point hope customer can understand, thanks!)
6.Question:How's the payment?
1).Telegraphic Transfer. T/T: 30% T/T deposit, 70% rest balance before shipment or against the original BL scanning. (If customer want to pay little deposit in beginning, for example, some customer want to pay 10% deposit, it is also acceptable; If some customer visit our factory and confirm the order, want to pay some cash as deposit, it is also acceptable).
2).If you want by Western Union or Trade Assurance, it is also OK.
7.Question:What is SAINT BEST GROUP special advantage?
We have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time. Before our machine reach your workshop, if you need we help you to design the drawing that list all machines should how to place in your workshop, we can help you to make the drawing to give suggestion in short time; And if you need we suggest how many squaremeters workshop is betterr, you can tell us your plan production, then we will suggest how many machines you need, and tell you how many squaremeters workshop is better.
8.If I want to use some certificates to pay less tax for importing your machines, can you help me?
Our company can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.
If you are window fabricator, looking for new machine for business expansion,
If you have interest to set up window production line as your new business,
Or you have any questions about window machine,
