Product Details:
Payment & Shipping Terms:
|
| Machine: | EVA Film For Laminated Glass | Application: | Laminated Glass Production |
|---|---|---|---|
| Thickness: | 0.38/0.76mm | Size: | 0.38/0.76mm X 2300mm X 100m |
| High Light: | glass laminating equipment,eva glass laminating machine |
||
| Packaging Details: | 3 rolls /case sea-worthy export packaging |
|---|---|
| Delivery Detail: | in 5 days after payment |
Poduct Description:
We produced EVA film with imported raw materials and additives .Ensure the super transparency of the architectural laminated glass,anti-aging function ,high viscosity ,the UV radiation level can reach 3.5.
EVA film is produced with 100% fresh material.Pattern EVA Film,EVA Film,EVA Film for Laminated Glass,The transmittance of super transparent film can reach 90%.Here are our three types of EVA film: outdoor project film,indoor decorative glass film and solar PV panel laminated glass film. EVA film for outdoor use is excellent in high UV-blocking and longer useful life
Features
★ EVA film for outdoor project features high transmittance, strong tensile strength and strong anti-aging ability.
★ EVA laminated glass produced by vacuum glass laminating machine is easy to clean with little excessive glue.
★ The tensile strength of Fangding outdoor EVA film is much higher than the ordinary one.
★ Easy for processing. EVA laminated glass can be processed by Fangding one-step laminated glass machine or autoclave.

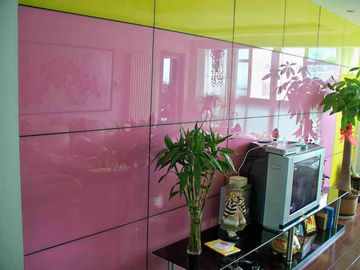

★ Interior decorative glass EVA film obtains good quality stability and various styles, such as color film, patterned film,ultrathin picture film etc.
★ Special EVA film---night lights film.EVA film for safety laminated glass,EVA film for construction project,EVA plastic film,modified EVA laminated glass film,EVA laminated glass film,Colored EVA film,Colored EVA Plastic Film,EVA laminating glass film.
Construction SBT-A Series
SBT-A series high temperature extra clear EVA film provided by Saint Best Group is specially used for outdoor building.The transparency reach up over 91%,has better adhensive.
Product details
| Item | Thickness(mm) | Length(m) | Specification(mm) |
| SBT25A | 0.25 | 150 | 2000/2300 |
| SBT38A | 0.38 | 100 | 2000/2300 |
| SBT50A | 0.50 | 80 | 2000/2300 |
| SBT76A | 0.76 | 50 | 2000/2300 |
The main parameters of EVA film
| Test item | Result |
| Density | 1.069g/cm |
| Refractive index | 1.47-1.50 |
| Tesile strength | >20MPa |
| Tensility of peak | >200% |
| Moisture | 0.35-0.55% |
| Shrinkage | <6% |
| Test of strike |
3-9 |
| Useful life | >20 years |
Technical Paramters of Saint Best Laminated Glass EVA Film
|
Test item |
Architectural project I |
Architectural project II |
|
Tensile strength |
8.1MPA |
6.4MPA |
|
Adhesion of glass |
99.7N/cm(180° peeling) |
94.6N/cm(180° peeling) |
|
Adhesion of organic polymer film |
21.3N/cm(180° peeling) |
15.4N/cm(180° peeling) |
|
High transmittance |
≥90.5% |
≥90.9% |
|
Haze |
0.47% |
0.50% |
|
UV block rate |
99% |
99% |
|
Elongation |
800% |
880% |
|
Shrinkage |
≤5% |
≤5% |
|
Water absorption |
≤0.01% |
≤0.01% |
|
Heat-resistance In the 100°Cwater for 2 hours |
No bubbles, no de-lamination |
No bubbles, no de-lamination |
|
Humidity-resistance (60°C, 95% TH 40 hours) |
No bubbles or haze appeared |
No bubbles or haze appeared |
|
Anti-aging (50°C, 65% radiation 3000hours) |
Light change≤3.0% No yellow change |
Light change≤3.0% No yellow change |
|
Heat & cold shock (cold 30 min, heat 80°C 30min: 50circles |
No de-lamination and bubbles |
No de-lamination and bubbles |
|
Impact resistance against shot-bag |
Qualified |
Qualified |
|
Ball impact peeling resistance |
Qualified |
Qualified |
|
Useful life |
≥15 years |
≥15 years |
Advantages of our EVA film
1.With surface enbossing technology, the laminated glass is produced with high yield and the film is easy for use and storage.
2.Processing technology is very easy. High quality laminated glass can be realized with either Fangding one-step laminating machine or autoclave.
3.With 100% imported mew materials, PVB film features high transparnt, excellent quality stability and long service life.
4.With its high tensile strength and climatic resistance, the PVB film can be used for windshield for automobile and ships, etc.
Application
1.Curtain wall, stair rail, skylight, awning, balcony guardrail.
2.Auto windshield, marine glass, bullet-proof glass.
3.Switchable glass, LED laminated glass and solar PV panel lamianted glass, etc.
Packaging &Shipping
Storage of EVA film
EVA laminated glass film usually required to be stored in the ventilated ,dry and clean warehouse to avoid direct light and heat radiation :avoid rain ,pressure ,outside force collision and hard objects scratches .EVA Film for Laminating Glass,Pattern EVA Film for Laminated Glass,Pattern EVA for Laminating Glass,White EVA Film,Black EVA Film,Hoariness EVA Film,Opacity EVA Film,Colored EVA Flim.The temperature should not exceed 32 ℃ and the humidity should not exceed 55%.When the stocks of EVA film is larger ,pallet is needed to be bedding under the EVA film order to ventilate ,disperses heat and prevent moisture .EVA film will be various degree self-sticky when the film is excessive pressured ,heat or moisture .Please hanging the film and avoid pressure if possible .If the surface of the EVA is excessive humidity ,it also will affect the bond strength of the EVA film to glass or other materials ,affect the normal use.
Factory and Workshop
The machines will be packed with standard seaworthy wooden case to make sure customer will receive the machines they ordered Intact.Some other special structural machines will be fixed well package to the container.
We choose reliable shipping company,such as NYK,MAERSK,COSCO,APL.,etc
The engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
We always looking for long term cooperaion, not one time deal.
If you are window fabricator or glass factory, looking for new machine for business expansion,
If you have interest to set up window production line,glass machine as your new business,
Or you have any questions about window machine,glass machines.
We are here, ready for support.
We look forward to your more work opportunity.
WHY YOU CHOOSE US?
1.Question:Are your manufacture?
Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.
2.Question:What’s the customer service ?
Answer:
1).reply within 12 hour
2).deliver max. days within 15 days,insulating glass machine:within 30 days
3).one to one service
4).24 hours for after -sale serive
5).more than 13 years experience in this kind machine field
6).fluent english ,communication barrier free
3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 2 year.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4.Question:if our price is higher than another company or factories ?
Answer:
plaese check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years.
belive you will chooes the same value of the machine, not cheaper equipement
5.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
6.Question:How's the payment ?
Answer:
Telegraphic Transfer(T/T). or L/C. (If you want by west union, it is also ok.)
