Glass Large Format Commercial UV Flatbed Printer with 2500x1300mm Epson DX5 Head

China Glass Large Format Commercial UV Flatbed Printer with 2500x1300mm Epson DX5 Head supplier
Glass Large Format Commercial UV Flatbed Printer with 2500x1300mm Epson DX5 Head supplier Glass Large Format Commercial UV Flatbed Printer with 2500x1300mm Epson DX5 Head supplier

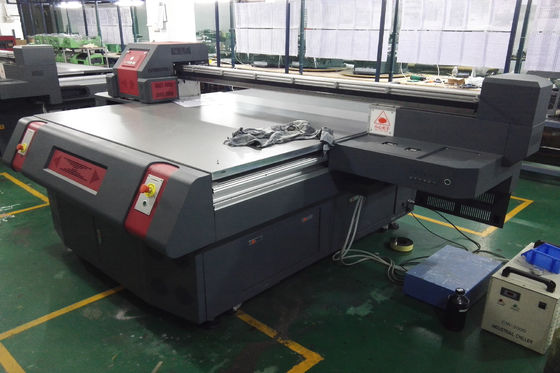

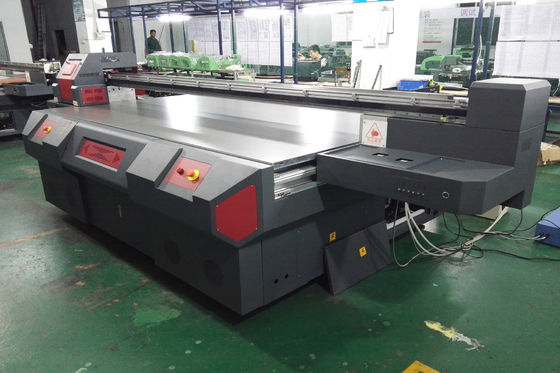

Large Image :  Glass Large Format Commercial UV Flatbed Printer with 2500x1300mm Epson DX5 Head

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE/CCC/SGS
Model Number: MTS-UV2513EP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15~30 Working Days After Received Your Prepayment
Payment Terms: T/T
Supply Ability: 68Sets/Month
Contact Now
Detailed Product Description
Product Name: Flatbed UV Printer Size Of Panel: 12.1 Inch
Resolution: 800*600 Brightness: 400cm/d
Standard: CE/ROHS/FCC/SGS Sype: FreeStanding
UV Printer For Glass: UV Printer For Corrugated Plastic Sheet Flatbed UV Printer For KD Board: Flatbed UV Printer For Acrylic Sheet
High Light:

flatbed printing machine

,

flatbed digital printer

Glass Large Format Commercial UV Flatbed Printer with 2500x1300mm Epson DX5 Head





 Corrugated Plastic Sheet Flatbed UV Printer Epson DX5 Printing Head 2500x1300mm

EPSON DX5 Flatbed UV Printer for PVC Expansion Board, Corrugated Cardboard, Corrugated Plastic Sheet 2.5x1.3m

Application:
KD Board, Plexiglas, Acrylic Sheet, Glass, Ceramic, Ceiling, Aluminum Sheet, Wooden Board, Door Sheet, Metal Panel, Bill Board, Paper Board, Foam Board, PVC Expansion Board, Corrugated Cardboard, Corrugated Plastic Sheet, Flexible Materials, such as PVC, Fabric, Canvas,

Cloth, Carpet, Sticky Note, Reflective Film, Leather, Wallpaper

Technical Parameter:
Model: MTS-UV2513EP
Print Size: 2500mm*1300mm
Print Head: EPSON DX5
Print Heads Nos: 1/2PCS
Printing Color: CMYK+W
Media Type: All rigid flat media such as PVC,ABS,Acrylic,Aluminum Panel,Wood panel,Glass,

Metal sheet,
Ceramic tile,Cystosepiment,Paperboard.
Print Speed: High Quality Mode: 8m2/hr
Ultra High Quality Mode: 4m2/hr
Ink Type: UV Ink (Cyan, Magenta, Yellow, Black, Light Cyan, light Magenta, 2 White,)
Automatic Cleaning system: Positive pressure cleaning
Interface: High Speed USB
Operating System:Microsoft Windows98/2000/XP/Win7
RIP Software:Photoprint/PrinterManager/MainTop/Ultraprint
File Version:TIFF,BMP,PDF,EPS,JPEG
Power Requirement: AC 220V±10%, 50/60Hz, ≥13A,Rated Power 2.5KW
Dimension: 4190mm*1870mm*1400mm (L*W*H)
Resolution: 2880dpi*1440dpi*720dpi*360dpi
Net Weight: 800kgs
Gross Weight: 1200kgs
Warranty: One Year Printer Warranty (exclude consumables and print heads)

Specification:

Print size

2500mm*1300mm

Print head

2 Epson print heads (3.5pl) -8 colors (CMYKLC LM+ W)

Print height

Max.100MM

Bearing weight

Max.100KG

Print accuracy

1440*2880 dpi

Ink System

UV ink

Print speed

2 pass 12 m2/h, 4 pass 10 m2/h
6 pass 7m2/h, 8 pass 5m2/h, 12 pass 3m2/h

Automatic cleaning system

Positive pressure cleaning

Nozzle technology

Piezoelectric ink-jet printing

Ink Box:

Continuous ink/ 1000ml

Nozzle control

Nozzle temperature and voltage adjusted by software

Drying system

UV lamp

Color control

Conform to ICC , with curve and density adjustment functions

Image format

TIFF, JPEG, Postscript 3, EPS, PDF, etc.

Electrical Specifications

50Hz/60Hz, 200V-240V, Maximum 30Amp

Interface mode

USB 2.0 Interface

Rip software

Ultraprint V4.3 (Windows 2000,Windows XP Pro SP2)

Weight

1000KG

Equipment size

L3800*W2200*H1250mm  14.5 m3

Packing

wooden case, fumigation



 What’s your printer warranty?
1 year. During the 1 year warranty if any part is faulty, our company will give you replacing parts

for free and help you to change the faulty parts. When the warranty expired, our company will still

 give you technician support for free. The only difference is the replacing part no longer free. So,

we provide lifelong after sale
service to you as long as you buy our printer.

How about delivery time?
15 working days after deposit, All of the ordered goods will be tested with printing by our
professional technicians before the shipment.

Which country have been sold?
Spain, Turkey, Russia, India, Iran, Saudi Arabia, Malaysia, Australia, Ukraine, Hungary, Belerus,

etc


How to choose a digital printer?
1.Judge if the printer is of high resolution.
Print an image on a pvc sheet with high resolution once. After the
image is printed,put the pvc sheet on the flatbed printer and print again. If the image is
very clear after twice printing, then the printer is of high resolution.
2.Get to know if the company has good after-sale service?If you want to use the printer skillfully,

 you have to
choose a company with good after-sale service. If you meet problems, the company must have

technicians to
give you technical supports. IF NOT YOUR PRINTER WILL STAY IN YOUR WAREHOUSE

 SLEEPING THERE.UV Flat Printer,UV Flatbed Printer,Glass Printer,Acrylic UV Printer,PVC

Vinyl Printer,Wooden Sheet Printer,Aluminum Sheet Printer,Billboard Printer,Fabric Printer,POP

Advertisement Printer,Indoor Photographic Print,Outdoor Signage Print,Roll to Roll UV Printer,UV

 Inkjet Printer,UV Inkjet,UV Hybird Printer,UV Roll to Roll Printer,Signage Printer
 How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

How many person need to operate this UV flatbed printer?
Only one person is enough to operate this UV flatbed printer. And it is very easy to learn and

maintain.




UV Flat Printer,UV Flatbed Printer,Glass Printer,Acrylic UV Printer,PVC Vinyl Printer,Wooden

 Sheet Printer,Aluminum Sheet Printer,Billboard Printer,Fabric Printer,POP Advertisement Printer,

Indoor Photographic Print,Outdoor Signage Print,Roll to Roll UV Printer,UV Inkjet Printer,UV Inkjet

Printer,UV Hybird Printer,UV Roll to Roll Printer,Signage Printer,3d metal printer, advertising poster

 printer,High Resolution Large Format Digital UV Flatbed Printer,Digital UV Flatbed Printer,Flatbed

Led UV Printer,Barcode and Label Printer,
