10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

China 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier
10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine supplier

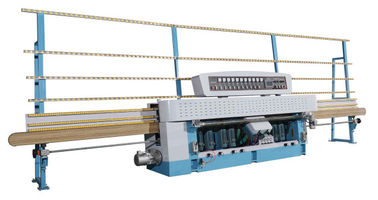

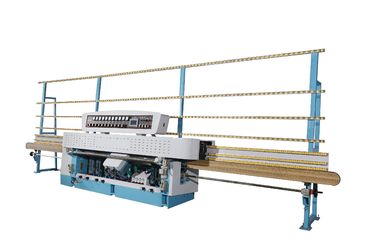

Large Image :  10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE/ISO
Model Number: SBT-XZM10P

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Glass Straight Line Glass Edging Polishing Machine,Automatic Glass Edger and Polisher
Price: Negotiable
Packaging Details: Wooden Case or customized
Delivery Time: 15~30days
Payment Terms: T/T
Supply Ability: 18Sets/Month Automatic Glass Edging Polishing Machine,Automatic Glass Grinding and Polishing Machine
Contact Now
Detailed Product Description
Glass Edger And Polisher: Glass Straight Line Glass Edging Machine Thickness Range: 3~30mm
Control System: PLC Spindle Quantity: 10
Grinding Straight Line Flat Edging: Vertical Grinding Straight Line Flat Edging Vertical Glass Edger And Polisher: Automatic Glass Edger And Polisher
High Light:

glass double edging machine

,

double edger machine

Laminated Glass Straight Line Glass Edging Grinding Machine with 10 Spindles /  Glass Edging Polisher Machinery

Glass Edger and Polisher /  Glass Straight Line Glass Edging Machine

Automatic Glass Straight Line Glass Edging Machine / Vertical Glass Edger and Polisher



Basic Info.

Model NO.:SBT-XZM10P



Type:Glass Beveling Machine
Certification:CE, ISO
Control System:PLC
Glass Thickness:3~30 mm
Speed:0.8~5.5m/Min
Min. Process Size:40X40 mm
Angle Range:45°



Export Markets:Global

Packaging & Delivery

Packaging Details: plastics and wooden supporter.Suitable package for sea transportation.
Delivery Detail: 30 days after deposit.

I. General description:

1. SBT-XZM10P is suitable for processing straight-line edge & 45° arrises on glass.

2. A special design of the in-feed section for controlling the grinding amount of glass without adjusting each

 spindle individually.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

3. With ABB spindle motors. The conveyor system running on ball bearing units, this machine has a much

stronger loading and delivering capacity, thus it is able to process mini piece and extremely thick piece with

 high precision and good water-proofing.

  10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

4. Input and output conveyors adopt timing belt which can improve the stability of transmission. And the

timing belt is easy to replace during maintaining.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

5. Perfect oil supply system makes sure smooth lubrication.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

6. Beam is iron casting. Double-annealing makes it durable and no deformation.

7. Speed is adjusted by frequency inverter.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

8. PLC control with touch screen and pneumatic polishing.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

9. Water system is well distributed with thick water pipe.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

10. 10 spindles totally: 6 for the straight-line edge (adopt the independent wool felt wheel), 2 for front arris

 and 2 for back arris.



II. Technical Data

1. Processing glass thickness: 3-30mm

2. Angle of arris: 45°

3. Min.size of glass: 40mm×40mm

4. Processing speed: 0.8-5.5m/min (frequency inverter)

5. Installed power: 21.5KW

6. Occupation of land: 7.4m×1.4m×2.5m



III. Wheels position: (From input to output end)

 10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine

No.

Name

Function

No.1

Diamond wheel

Rough grinding of flat edge

No.2

Diamond wheel

Semi-fine grinding of flat edge

No.3

Resin wheel

Semi-fine grinding of back arris

No.4

Fine grinding wheel

Fine grinding of back arris

No.5

Resin wheel

Semi-fine grinding of front arris

No.6

Fine grinding wheel

Fine grinding of front arris

No.7

Resin wheel

Fine grinding of flat edge

No.8

Fine grinding wheel

Polishing of flat edge

No.9

Fine grinding wheel

Polishing of flat edge

No.10

Wool felt wheel

Polishing of flat edge


Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Vertical Glass edge refine grinding machine with 9 spindles,Glass edging Polisher machinery,

PLC+Touch Screen controlled Glass miltering edge equipment,Glass straight line arrise machine with Automatic

 Thickness adjust.

Saint Best Group always looking for long term cooperaion, not one time deal.Double Bevel edge Glass machine with air driven Polishing device,Glass DOG edge cutting grinding polish

 machine,Multi-angle Chamfering machine with flat edge glass machinery,

Glass arrise edge machinery glass melting furnaces used.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.glass edges polishing machine with flat edges grinding,Laminated glass straight line edging

 grinding machine with 9 spindles,OGEE Bevel edge Glass machine with Pneumatic Polish system.





FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Miter edge Glass machine with air Polishing+ Electrical Rail Lift system,

Rough Edge grinding glass machine for Architecture Glass.

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.Insulating Glass Production Line

Glass Crude Grinding before Temper Furnace,Glass Crude Grinding Machine for Temper Furnace,Pneumatc

 Polish arris glass machine.

10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine10 Spindles Laminated Glass Edging Machine with 45 Angle Range,Glass Straight Line Glass Edging Machine
