Product Details:
Payment & Shipping Terms:
|
| Glass Edger And Polisher: | Glass Straight Line Glass Edging Machine | Thickness Range: | 3~25mm |
|---|---|---|---|
| Control System: | PLC | Spindle Quantity: | 9 |
| Grinding Straight Line Flat Edging: | GLASS FLAT EDGER & VARIABLE MITER MACHINE | Vertical Glass Edger And Polisher: | Miter Edge Glass Machine With Air Polishing+ Electrical Rail Lift System |
| High Light: | glass double edger,double edger machine |
||

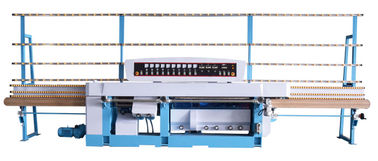

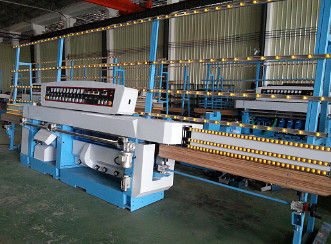

PLC OGEE Bevel edge Glass machine with Pneumatic Polish system / Glass Straight Line Edging Grinding Machine with 9 Spindles
Miter edge Glass machine with air Polishing+ Electrical Rail Lift system / Glass Straight Line Glass Edging Machine
Automatic Glass Straight Line Glass Edging Machine / Vertical Glass Edger and Polisher
Basic Info.
| Packaging Details: | plastics and wooden supporter.Suitable package for sea transportation. |
|---|---|
| Delivery Detail: | 30 days after deposit. |
I. General Description:
1. This machine is able to process the miter edge, bottom edge and arise on glass. The miter
edge or bottom edge is as bright as the original after processing.

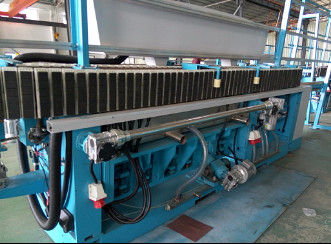

2. Input and output conveyors adopt timing belt which can improve the stability of transmission. And the
timing belt is easy to replace during maintaining.
3. Perfect lubrication system makes sure the smooth grinding.
4. Synchro-lift device of the input and output section for controlling the grinding amount of glass
without adjusting each spindle individually.
5. A strong upright post sets up to support the middle of beam, which makes sure beams are indeformable.
6. Swing frame driving device is strong and exact automatic programming device make sure all the precise
data.
7. Water tank is stainless steel.
8. Air exhaust device
9. Thickness, remaining thickness and miter angle are showed and adjusted by digital display or PLC.
Miter angle can reach 60 degree.
10. Speed is adjusted by stepless speed variator(standard) or frequency inverter.
II. Technical Specifications:
1. Processing glass thickness: 3-25mm
2. Miter angle:0°-60°(It means angle on glass is 30°-90°)
3. Min size processing glass:80mm×80mm
4. Processing speed:1.2-6.0m/min
5. Installation power: 20.3KW
6. Occupation land: 7.8m(length)×1.4m(width)×2.5m(height)
III. Wheels disposal (From input to output)
|
No. |
Wheel |
Function |
|
No.1 |
Diamond wheel |
Rough grinding for flat edge |
|
No.2 |
Diamond wheel |
Rough grinding for flat edge |
|
No.3 |
Resin wheel |
Semi-fine grinding for flat edge |
|
No.4 |
Fine grinding wheel |
Fine grinding for flat edge |
|
No.5 |
Polishing wheel |
Polishing for flat edge |
|
No.6 |
Resin wheel |
Rough grinding for front arris |
|
No.7 |
Fine grinding wheel |
Fine grinding for front arris |
|
No.8 |
Resin wheel |
Rough grinding for back arris |
|
No.9 |
Fine grinding wheel |
Fine grinding for back arris |
Before Sale:
Free professional design for each customer especially.
After sale service :
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment Terms :
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal
A,12month warranty
B,1%-2% spare parts
C, OEM&ODM are welcomed
D,Trail orders are available
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Vertical Glass edge refine grinding machine with 9 spindles,Glass edging Polisher machinery,
PLC+Touch Screen controlled Glass miltering edge equipment,Glass straight line arrise machine with Automatic
Thickness adjust.
Saint Best Group always looking for long term cooperaion, not one time deal.Double Bevel edge Glass machine with air driven Polishing device,Glass DOG edge cutting grinding polish
machine,Multi-angle Chamfering machine with flat edge glass machinery,
Glass arrise edge machinery glass melting furnaces used.
Our Advantage:
Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.glass edges polishing machine with flat edges grinding,Laminated glass straight line edging
grinding machine with 9 spindles,OGEE Bevel edge Glass machine with Pneumatic Polish system.
1. Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
3.Question:Why your price is higher than another company or factories ?
Answer: please check, what is is the differences of the machine of parts ,service and guarantee,especially the machine inner electric parts.Miter edge Glass machine with air Polishing+ Electrical Rail Lift system,
Rough Edge grinding glass machine for Architecture Glass.
sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,
but we use the famous and reliable parts for the machines inside.Insulating Glass Production Line
Glass Crude Grinding before Temper Furnace,Glass Crude Grinding Machine for Temper Furnace,Pneumatc
Polish arris glass machine.
