High Speed Glass Double Edging Machine With Low - E Glass Film Removing

China High Speed Glass Double Edging Machine With Low - E Glass Film Removing supplier
High Speed Glass Double Edging Machine With Low - E Glass Film Removing supplier High Speed Glass Double Edging Machine With Low - E Glass Film Removing supplier High Speed Glass Double Edging Machine With Low - E Glass Film Removing supplier High Speed Glass Double Edging Machine With Low - E Glass Film Removing supplier High Speed Glass Double Edging Machine With Low - E Glass Film Removing supplier

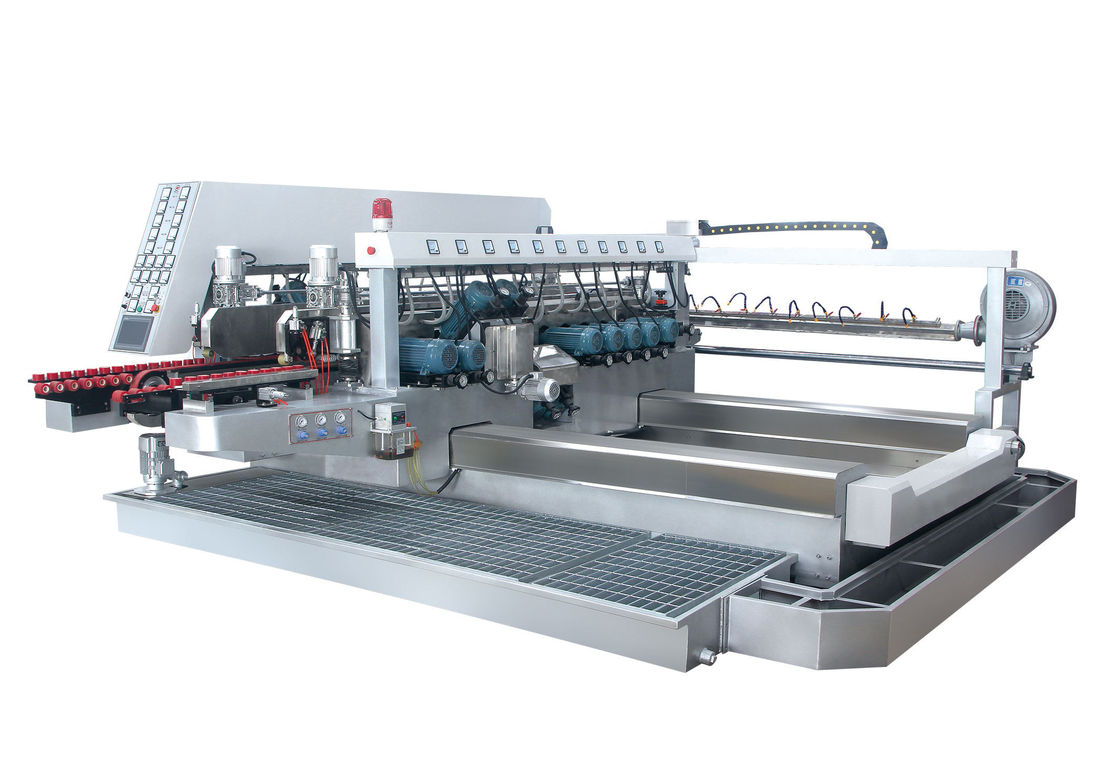

Large Image :  High Speed Glass Double Edging Machine With Low - E Glass Film Removing

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE/ISO9001:2008
Model Number: SBT-BYL4525

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD35000/Set@1 Set;USD30000/Set@more than 2 sets
Packaging Details: Export Standard Package
Delivery Time: 50Days after getting prepayment;
Payment Terms: T/T
Supply Ability: 12Sets/Month
Contact Now
Detailed Product Description
Glass Double Edger With Film Removing Device: Glass Double Edger Production Line Glass Transmission Rate: 0~8m/min
Glass Diagonal Error:: ±0.5mm/㎡ Thickness Of Process Glass: Standard 3~25mm
Number Of Motors: 22 Certification: CE/ISO9001:2008
High Light:

glass double edger

,

double edger machine

Quick Details

  • Condition: New
  • Machine Type: Glass double edger production line/Glass Double Edger with Film Removing Device
  • Production Capacity: 12 sets/month
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-BYL4525(22 Motors) l /
  • Dimension(L*W*H): 18500*10000*2800mm
  • Weight: 18000kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Grinding motor supplier: Shanghai ABB
  • Glass transmission rate: 0~8m/min
  • Thickness of process glass: Standard 3~25mm
  • Width of glass chamfering: 0~3mm
  • Number of motors:24
  • Error of glass chamfering width: ±0.2mm/m
  • Error of glass paralle: ±0.2mm/m
  •  6 Motors Glass Double Pencil Round Edge Grinding Machine / Pencil Glass Double Edge Edger

Packaging & Delivery

Packaging Details: export standard package
Delivery Detail: Shipped in 60 days after payment

Product Description

SBT-BYL4525(22 motors)



Feature:

1) oil lubrication full automatic including all motor slide plate
2) one option or push button use to retrack or move backward all polishing spindle.
3)opening/ closing using gear-rack.
4)Drive using 2 sets 3KW servo motors.
5)opening/ closing using 1 set 1.5KW servo motors.BYL4525(22 motors)



1. The first Double Glass Edging Machine:SBT-BYS4522

and

2. The second Double Glass Edger:SBT-BYS2522



the number of motors :22motors (depends on the customer's requirement)

the width of glass chamfering : 0~3mm

The thickness of process glass :3~25mm
The error of glass parallel: ±0.2mm/m

The error of glass chamfering width: ±0.2mm/m
Glass diagonal error : ±0.5mm/㎡

Width positioning error: ±0.1mm/㎡
Glass transmission rate : 0.5~8m/min

Power source:380/3ph/50Hz ( depends on the customer's requirement)

Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine

Arrangement of grinding wheels and distribution diagram of motor power

High Speed Glass Double Edging Machine With Low - E Glass Film Removing

Arrangement of grinding wheel and distribution diagram of motor power

No.1         No.2      No.3        No.4         No.5      No.6        No.7    No.8    No.9     No.10   No.11

100#        140#       240#       10S40       240#    10S40      240#   10S40   10S40  10S60   CE-3

Diamond  Diamond  Resin      Imported   Resin   Imported  Resin  Imported  Imported Imported

polishing   polishing   polishing  polishing  polishing polishing

wheel        wheel        wheel       wheel     wheel   wheel   wheel    wheel    wheel   wheel   wheel

High Speed Glass Double Edging Machine With Low - E Glass Film Removing



Main Features

The minimal size of the common process glass is 160mm*160mm,minimal thickness 2mm.The thickest size depends on the requirements and the quality of grinding wheel..Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine,12 motors glass double pencil round edge grinding machine,14 motors glass double pencil round edge grinding machine.

This machine has the advanced structures,precision components,exquisite assembly technology,good fittings,stable property,excellent quality,easy operation and simply maintenance.

Processing glass diagonal error within 0.5 mm,parallelism error within 0.1mm,chamfering balance,clear angles,no collapse edge, round edge phenomenon.10 Motors Glass double pencil edger,8 motors Glass double pencil edger,6 motors Glass double pencil edger,12 Motors Glass double pencil edger,14 motors Glass double pencil edger.

It is suitable for processing all kinds of high-grade sealed insulating glass and appliances glass.Can be extended the laser code then identify the automatic control.Glass Straight-line Turning Table,Glass automatic Turning Table,Glass Automatic Turning Table.

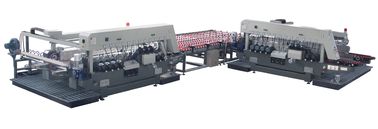

3. L-shape transfer table (SBT-BYL4525)



SBT-BYL4525 L-shape glass double-deck turning table is bilateral glass edge grinding machine ( right angle arrangement) in the middle of the directional control unit. The machine transmission device is divided into two layers, the bottom and top layers of transmission direction perpendicular to each other. The processing glass enters through the feed end and is processed by the first glass double straight edge grinding machine. After this, the glass is turned 90degree through the glass automatic reversing station. And then it is delivered to the feed end of the second set of glass double straight edge grinding machine and complete the other two sides edge grinding processing.Transittransport all actions by the first double edger control, without artificial assistance.glass tempering furnace,glass double edging machine,glass straight line beveling edging machine,glass straight line edging machine,glass straight line multilevel edging machine,glass washing machine,glass drilling machine,glass irregular shape machine,glass automatic sandblasting machine,glass chamfering machine and glass automatic cutting machine,glass automatic loading machine.



Main Technical Parameters:



No. Items Parameters Remarks
1 Max glass size/mm 4500×2500 Can be customized according to customer requirements
2 Min glass size/mm 200×200

The minimum size can transit

:70mm×70mm

3 Thickness of glass/mm 3-25mm
4 Glass transmission rate 0.5-34 m/min
5 power 3.5 KW
6 Power source AC380V 50HZ
