Payment & Shipping Terms:
|Aluminum Window Automatic Two Head Corner Crimping Machine:||Aluminum Window Corner Crimper||Aluminium Window Door Fabrication Machine:||Aluminum Corner Crimper|
|Aluminium Window Machinery:||Aluminum Corner Combining Machine||Corner Combining Cylinder Stroke:||85mm|
|Max Width:||90mm||Max Height:||120mm|
|Aluminium Corner Hydraulic Crimping Machine:||Aluminium Window Corner Crimper|
aluminium window machine,
aluminum milling machine
Aluminum Window Corner Crimping Machine For Aluminium Profiles , Aluminium Corner Crimper Press
|Packaging Details:||1 set in one free-fulmigation wooden case.|
|Delivery Detail:||Shipped in 15 days after payment;Aluminum Profiles Corner Combining Machine, Alumium Window Corner Crimping Press Machine|

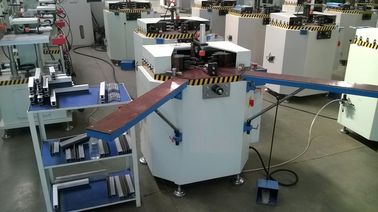

Aluminum Window Corner Connector Assembly Machine / Hydraulic Single Head Aluminum Window Corner Crimping Machine

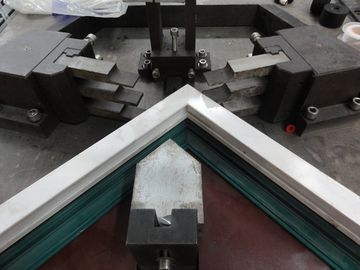

Aluminum Window Fabricating Machine, used for combining the 90° corner of aluminum window and door. Aluminum window corner crimping machine. aluminium window corner crimper.
1. The frame is specially jointed by steel with high quality and then does special process.
2. Adopt new mechanical linkage device,realized complete synchronous corner combining.
3. Synchro feeding structure make the adjustment very easy.Aluminum Window Single Head Corner Crimper, Aluminium Window Corner Hydraulic Crimping Machine.

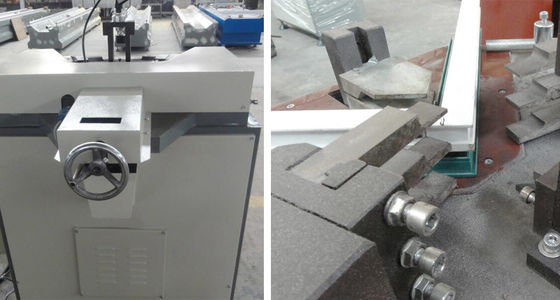

4. Screw thread regulates the distance between up and down crimping blade ensures regulates easily.
5.It is collocate single cutter of many points crimping cutter ensure reliably crimping heat insulation aluminum windows and doors.Aluminum corner combining machine / Aluminium window machinery.
|Main Specification and Technical Data>>|
|Power Supply||380V 50Hz|
|Rating oil pressure||15MPa|
|Motor rotational speed||1400r/min|
|Capability of oil box||20L|
|Corner crimping casing movement distance||85mm|
|General pressure of corner combining||48KN|
|Profile processing height||Max.120mm|
|The adjustable range of the main locating block||70mm|
|Tolerance of connection seam||≤0.15mm|
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4 How is Aluminum Window Single Head Corner Crimper guarantee?
4.1. Aluminum Window Single Head Corner Crimper warrenty period is 14 months after BL time;
4.2.12 hours technical support feedback;
4.3. Own window factory supply window fabrication support;
4.4. Own machining factory, which can control the spare parts quality at high quality;
4.5. Own accessories warehouse and user can enjoy the agent price.
5 How is our package?
Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
6 Why is price higher than other supplier?
6.1. We have our own machining factory and the high quality technical quality is our aim;
6.2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
6.3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
6.4. Our warrenty period is 14 months after BL time. It can support the new comer client going well in the beginning time.
If you are window fabricator, looking for Aluminium Four Head Window Door Processing Crimping Machine,
If you have interest to set up window production line as your new business,
Or you have any questions about window machine,
Aluminum profile CNC Bending Machine for Curved Aluminium Windows: aluminum profile CNC bending machine
Aluminum Profile CNC Bending Machine: Aluminum profile CNC Bending Machine for Curved Aluminium Windows
CNC aluminum profile roll bending machine with 3 axis: CNC aluminum profile roll bending machine
Min. diameter of bending: 150mm
