Glass Vertical Washing and Drying Machine,Vertical Glass Washing Machine,Low-e Glass Washing Machine
1.Brief Introduction
1.1 Low-E glass coating face detection:Six Low-E Soft Nylon Brushes;the brushes distances is adjustable;
1.2 The washing room have stainless water compartment flap,which avoid second glass pollution;
1.3 The drying room is equipped with Mist separation device,which will avoid oil or mist to create bright spots;
1.4 Two independent water tanks and water cycle;
1.5 Two stainless steel pump;
1.6 High air press and low noise blower;
1.7 Bystronic Technology Air Knives;The air knives degree adjustable;
1.8 Whole Stainless Steel cover for washing and drying section;
1.9 Water Heating Function(Suggest use when the room temperature lower than 7 degree)
1.10 Frequency speed control
1.11 Cold light inspection for output conveyor
2. Technical parameter
2.1 Size of appearance(L×W×H):
SBT-LB2500: 9090mm × 2300mm×3400mm
SBT-LB2000: 7370mm × 2100mm ×3030mm
SBT-LB1600: 7000mm ×1900mm ×2530mm
2.2 Height of working table:500mm
2.3 Total weight: 1100kg
2.4 Voltage: 380V; 50HZ / 220V,60HZ/415V,50HZ
2.5 Power:SBT-LB1600:15Kw /SBT-LB2000:19Kw/ SBT-LB2500:23Kw
2.6 Input speed: 2m/min～7m/min can be adjusted by Frequency speed control
2.7 Processing scope:
Min.size of glass:200mm×450mm
Max.size of glass:SBT-LB1600:1600mm(Height) SBT-LB2000:2000mm (Height) SBT-LB2500:2500mm(Height)
2.8 Glass thickness:3～15㎜
2.9 Brushes:6 pieces
2.10 Key Parts:
| No. | Key Parts | Manufacturer | |
| 1 | Electrical Components | SCHNEIDER | GERMANY |
| 2 | Motor | OTG | CHINA |
| 3 | CHAIN | DE AO | CHINA |
| 4 | Proximity Switch | OMRON | JAPAN |
| 5 | Air Cylinder | SOUTHMAN | CHINA |
| 6 | Photoelectric Switch | SICK | JAPAN |
| 7 | Air Hose | ASHUN | TAIWAN |
| 8 | Intermediate Relay | WEIDMULLER | GERMANY |

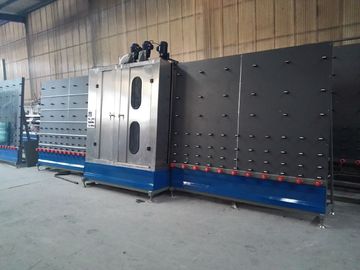

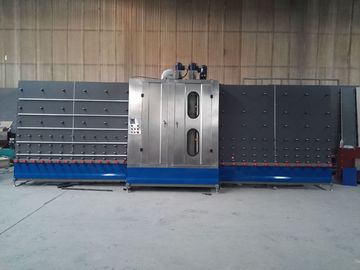

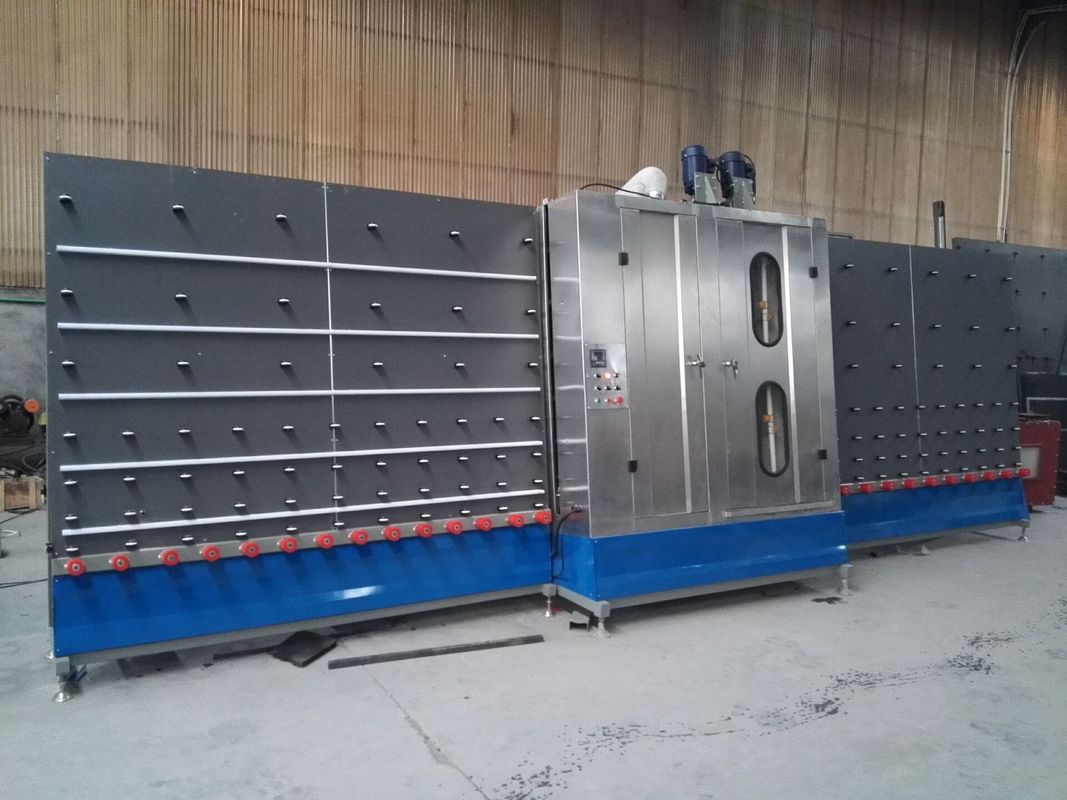

3.Close-up picture for vertical washing machine:
3.1Transfer Rubber:
3.2 Air Blower For Glass Drying:
3.3The close-up picture of Vertical Washing Machine:
3.4 Electrical components adapts Schneider ( made in Germany)
3.5 Transmission of Brushes For Glass Cleaning:
SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.Vertical Low-e Glass Washing Machine,Automatic Glass Washing Machine,Vertical Glass Washing&Drying Machine,Vertical Glass Washer.
SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.Vertical Low-e Glass Washer,Automatic Low-e Glass Washing&Drying Machine.
SAINT BEST GROUP produce high quality machines, also pay attention to package.
The machines will be packed with steel pallet and standard export wooden case,
to make sure customer will receive the machines they ordered Intact.
Before Sale:
Free professional design for each customer especially.
After sale service :
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment Terms :
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal
A,12month warranty
B,1%-2% spare parts
C, OEM&ODM are welcomed
D,Trail orders are available
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Double Glazing Glass Washing Machine,Insulating Glass Washing Machine,DGU Glass Washing Machine,IGU Glass Washing Machine.
Saint Best Group always looking for long term cooperaion, not one time deal.Double Glazing Insulated Glass Machine
Our Advantage:
Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Automatic Low-e Insulating Glass Washer,Low-e Glass Washing&Drying Machine,Automatic Low-e Glass Washing Machine with Tilting Table,Vertical Automatic Glass Washing Machine.
FAQ
1. Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
3.Question:Why your price is higher than another company or factories ?
Answer: please check, what is is the differences of the machine of parts ,service and guarantee,especially the machine inner electric parts.Vertical Glass Washing Machine,Vertical Low-e Glass Washing Machine.
sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,
but we use the famous and reliable parts for the machines inside.Glass Washing Machine,Low-e Glass Washing Machine.
