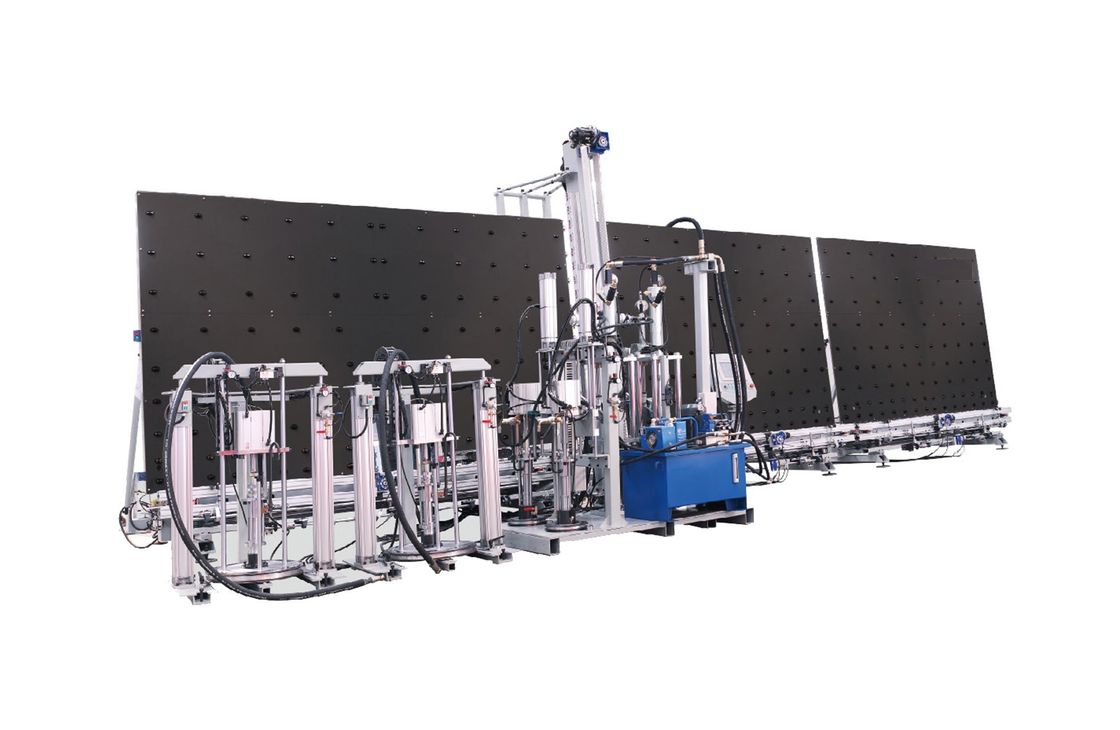

Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU

China Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU supplier
Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU supplier Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU supplier Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU supplier Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU supplier

Large Image :  Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: Valid
Model Number: SBT-ASR-2540DT/S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package/Carton
Delivery Time: 10~20Days
Payment Terms: T/T
Supply Ability: 18Sets/Month
Contact Now
Detailed Product Description
Machine: Automatic Sealing Robot For Four Side Stepped IGU,Triple IGU,Semi-Circular IGU,Pentagonal IGU Model: SBT-ASR-2540DT/S
Application: Insulating Glass Automatic Sealing Robot Control System: PLC
Shape Sealing: Any Shape
High Light:

double glazing manufacturing equipment

,

double glass machine

Automatic Sealing Robot for Triple Insulating Glass / Triple Double Glazing

Automatic Sealing Robot for Insulating Glass /  Double Glazing

Automatic Shape&Structure IGU Sealing Robot  /  Automatic Glass Sealing Robot

Quick Details

  • Brand Name: SAINT BEST
  • Model Number: SBT-ASR-2540DT/S
  • Product name: Automatic Glass Sealing Robot
  • Air consumption: 0.6~0.8MPa
  • Service: Service Machinery Oversea
  • Overall Dimension: 10,800mm(L)x3,500mm(W)x3,250mm(H)
  • Function: Insulating glass automatic sealing
  • Glass Size Max:2500x4000mm

    Min:350x500mm

    IGU  Thickness 12~60mm

Packaging & Delivery

Packaging Details: In wooden case & Plastic film
Delivery Detail: 20 working days after receiving the deposit




Technical Parameters:



- Max IGU Size:2500mm(H)x4000mm(L)

- Min IGU Size:350mm(H)x500mm(L)

- Max IGU Weight:600Kgs

- IGU Thickness:12-56mm

- Distance form the glass bottom to the floor:460-560mm

- Sealing Speed: 5-40m/min.

- Sealing Depth:Less than 18mm

- Sealant Pressure:Less than 350kg/cm2

- Degree Angle:6-9°
- Total Power: 13kw
- Air Pressure:0.6-0.8Mpa

- Dimension: 10,800mm(L)x3,500mm(W)x3,250mm(H)



Feature



- Two sets sealant supply system(Include the mixer),Two systems change

 by one key operation.

- It can seal ordinary IGU and triple IGU;

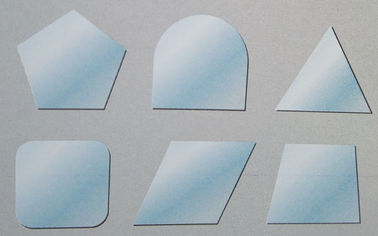

- It can seal Four Side Stepped IGU,Triple IGU,Semi-Circular IGU,Pentagonal IGU,Triangular IGU,Rectangular IGU,

Straight Semicircle IGU,Pentagonal IGU and ordinary IGU etc.

- Finished coating IGU can be stored on the third conveyor and increases efficiency;

-Economical and  practical adapt to glass deep processing enterprises;

-Friendly,succinctly,easily designed interface makes it convenient to operation;

-All edges and corners are perfectly coated without no air lines,smooth surface

without repairing of the corners.
- Servo control system uses the world-famous brand(Yaskawa);

-Smoothly convey and accurately positioning for the IGU by belt conveyor;
- Unique V-Belt transmission to reduce the viscose of the belt and keep clearness of the IGU edges;

- All parts with high standard ensure the equipments’ stability .



Machine Processing


SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Automatic Glass Sealing Robot,Automatic Sealing Robot for Insulating Glass,Automatic Sealing Robot for Double Glazing,Automatic Glass Sealing Machine,Automatic Shape&Structure IGU Sealing Robot,

Automatic Shape IGU Sealing Robot,Automatic Structure IGU Sealing Robot,

Automatic Shape&Structure DGU Sealing Robot,Automatic Shape DGU Sealing Robot,Automatic Structure DGU Sealing Robot,Automatic Triple  IGU Sealing Robot,Automatic Triple  DGU Sealing Robot.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Automatic Glass Sealing Robot,Automatic Sealing Robot for Insulating Glass,Automatic Sealing Robot for Double Glazing,Automatic Glass Sealing Machine,

Automatic Shape&Structure IGU Sealing Robot,Automatic Shape IGU Sealing Robot,Automatic Structure IGU Sealing Robot.



Packaging & Shipping


SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered IntactAutomatic Shape&Structure DGU Sealing Robot,Automatic Shape DGU Sealing Robot,Automatic Structure DGU Sealing Robot,Automatic Triple  IGU Sealing Robot,Automatic Triple  DGU Sealing Robot.

Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU

Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Automatic Shape&Structure DGU Sealing Robot,Automatic Shape DGU Sealing Robot,Automatic Structure DGU Sealing Robot,Automatic Triple  IGU Sealing Robot,Automatic Triple  DGU Sealing Robot.

Saint Best Group always looking for long term cooperaion, not one time deal

Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Automatic Glass Sealing Robot,Automatic Sealing Robot for Insulating Glass,Automatic Sealing Robot for Double Glazing,Automatic Glass Sealing Machine, Automatic Shape&Structure IGU Sealing Robot,

Automatic Shape IGU Sealing Robot,Automatic Structure IGU Sealing Robot.





FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Automatic Glass Sealing Robot,Automatic Sealing Robot for Insulating Glass,Automatic Sealing Robot for Double Glazing,Automatic Glass Sealing Machine,

Automatic Shape&Structure IGU Sealing Robot,Automatic Shape IGU Sealing Robot,Automatic Structure IGU Sealing Robot.

Insulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGUInsulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGUInsulating Glass Sealing Machine for Four Side Stepped / Triple / Semi - Circular IGU



Automatic Sealing Robot for Four Side Stepped IGU,Triple IGU,Semi-Circular IGU,Pentagonal IGU
