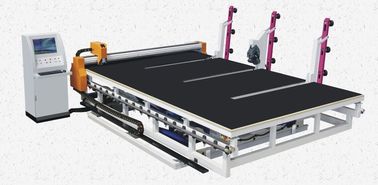

Large Image :  CNC Automatic Glass Cutting Machine,CNC Glass Cutting Machine with Automatic Loading,CNC Glass Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Saint Best
Certification: CE
Model Number: SBT-CNC-3826AL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set CNC Automatic Glass Cutting Machine,CNC Glass Cutting Machine with Automatic Loading,CNC Glass Cutting Machine
Price: Negotiable
Packaging Details: Standard Export Package/Wooden Crate
Delivery Time: 20~40Days
Payment Terms: T/T
Supply Ability: 18Sets/Month CNC Automatic Glass Cutting Table,CNC Glass Cutting Table with Automatic Loading,CNC Glass CuttingTable
Contact Now
Detailed Product Description
Machine: CNC Automatic Shaped Glass Cutting Machine With Semi-Automatic Glass Loading Model: SBT-CNC-3826SL
Control System: CNC Glass Cut: Shape Glass Cutting
Max. Speed: 160m/Min Max Size: 3700x2500mm
Servo Motor: Yaskawa Rack: Altantic Germany
Valve: SMC Sensor: Panasonic
Glass Thickness: 2~19mm
High Light:

glass cutting equipment

,

glass cutting machinery

CNC Automatic Glass Cutting Machine,CNC Glass Cutting Machine with Automatic Loading,CNC Glass Cutting Machine,CNC Automatic Glass Cutting Table,CNC Glass Cutting Table with Automatic Loading,CNC Glass CuttingTable

CNC Automatic  Glass Cutting Machine with Automatic Loading 3700x2500mm

CNC Automatic Shaped Glass Cutting Machine with Semi-Automatic Glass Loading

CNC Glass Cutting Table /  Automatic Glass Cutting Line

Automatic Glass Cutting Machine /  CNC Glass Cutting Line

 CNC  Automatic Shaped Glass  Cutting Machine for Pentagon / Ploygon Glass Cutting

CNC   Glass  Cutting Machine for Triangle  / Trapezium  / Straight Edge+Simicircle Glass Cutting

CNC Automatic Shape Glass Cutting Table 3700x2500mm

Automatic CNC Glass Cutting Line

CNC Glass Cutting Machine

CNC Automatic Glass Cutting Machine,CNC Glass Cutting Machine with Automatic Loading,CNC Glass Cutting Machine

Quick Details

  • Condition: New
  • Machine Type: Glass Cutting Machine
  • Production Capacity: 160m/min
  • Place of Origin:  China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-CNC-3826AL
  • Voltage: 380V/50Hz/3phase
  • Certification: CE
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Glass Cut: Any Shape
  • Max. Speed: 160m/Min
  • Servo Motor: Yaskawa
  • Rack: Altantic Germany
  • Valve: SMC
  • Sensor: Panasonic
  • Maximum glass size: 3700x2500mm
  • Glass thickness: 2~19mm

Packaging & Delivery

Packaging Details: Standard Export Package/Wooden Crate
Delivery Detail: 20-40days

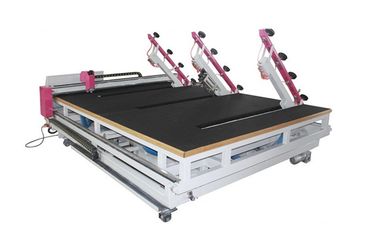

SBT-CNC-3826AL CNC Automatic Shaped Glass Cutting Machine with Automatic Glass Loading





Characteristic

-          Mn bridge steel (Q345A ), perfect surface treatment

-          Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched

-          Cutting pressure automatic adjusted according to glass thickness

-          Cutter head 360 degree rotating

-          Climbing wheels on the cutter head for protecting the cutter assembly and the glass

-          Water proof surface panel, stainless steel side covered, water and deformation resisting

-          High quality felt, perfect level, anti-static

-          Automatic side locating system, pneumatic mechanical and photoelectric joint locating

-          Self-lubricating guide rail

-          Air filter for keeping the oil clean

-          Air float and belt transmit

-          Linear guide rail

-          Automatic oiling for transmission system



Mechanical Parts



Name

Brand

Table surface panel

High-density waterproof panel, roughness≤±0.20mm/m (Imported material)

Rack and rail

ALTANTA GEMERGY

Belt/band pulley

KONYEAR

Cutter wheels and holder

BOHLE GEMANY



Electric Parts:



Name

Brand

Touch screen

LG KOREA

Relay

OMRON JAPAN

Terminal

WAGO GERMANY

Air-break switch/low-voltage apparatus/button

MOELLER GERMANY

Servo motor

YASKAWA JAPAN

Proportioning solenoid valve

SMC JAPAN

A.C. contactor

SCHNERDER

Laser Sensor

PANASONIC

Position switch

OMRON

Control card

NAIKA (GERMANY)/GALIL(USA)

Frequency converter

DELTA

Pneumatic components

AIRTAC





Technical Parameter:

Model

Max. Glass size

Thickness

Max. Speed

Air Pressure

SBT-CNC-2620

2440*1830mm

2~19mm

150m/min

0.6~0.8MPa

SBT-CNC-3826

3700*2500mm

3~19mm

160m/min

0.6~0.8MPa

SBT-CNC-4028

4000*2800mm

3~19mm

160m/min

0.6~0.8MPa


Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery.  So we will provide the best machine for you.Automatic Glass Shape Cutting Machine With Semi-Automatic Loading Device,Automatic Glass Shape Cutting Machine,Automatic CNC Shaped Glass Cutting Machine,Shaped Glass Cutting Machine,CNC Shaped Glass Cutting Machine,Automatic Glass Cutting Machine.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.



Packaging & Shipping


SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.



Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Saint Best Group always looking for long term cooperaion, not one time deal.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.CNC Glass Cutting Machine,Automatic Glass Loading Machine,Automatic Glass Shape Cutting Line,Automatic CNC Shaped Glass Cutting Line,Shaped Glass Cutting Line,CNC Shaped Glass Cutting Line.CNC Automatic Shaped Glass Cutting Machine with Semi-Automatic Glass LoadingCNC Automatic Glass Cutting Machine,CNC Glass Cutting Machine with Automatic Loading,CNC Glass Cutting Machine

FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts,

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.
