Product Details:
Payment & Shipping Terms:
|
| Aluminum Window Machines: | Aluminum Corner Connector Cutting Saw | Aluminum Cutting Machine: | Aluminum Window Door Corner Key Cutting Saw Machine |
|---|---|---|---|
| Aluminum Window Cutting Saw: | Window Corner Connector Machine | Saw Blade Specification: | Φ500*Φ30*96 |
| Cutting Width*Height: | 140*200mm | Feeding Length: | 3~380mm |
| Aluminum Corner Connector Cutting Machine: | Automatic Feeding Aluminum Cut Off Saw | ||
| High Light: | aluminium fabrication machinery,aluminium window machine |
||
| Packaging Details: | 1 set in one free-fumigation wooden case for China supplier aluminum window cutting saw / corner connector machine |
|---|

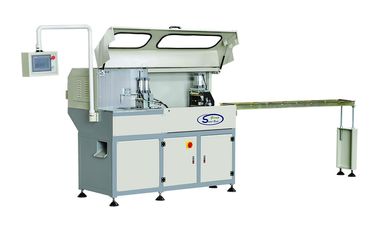

Name: Aluminum Window Door Profile Corner Key Cutting Machine
This machine is mainly used for corner connector of aluminum profile and plastic profile cutting.
A single clamping,can realize continuous cutting angle of 6 m code section.
-This machine is mainly used for corner connector of aluminum profile and plastic profile
cutting.Aluminum window corner connector cutting.
-The Angle adjustable voltage technology, quick adjustment, high efficiency.
-Feed movement adopts linear motion bearings, small resistance, high machining accuracy.
-Use carbide saw blade for Cutting tools, is of high cutting speed, easy operation, safe
and reliable.
-Make good use of the material during cutting.
-This machine is suitable for massive cutting of angle connectors.
-Motor phase sequence protector is installed in the motor system, To improve the security
of the system.
|
SPECIFICATIONS FOR CORNER KEY CUTTING SAW
|
|||
|
Model
|
CLJJA-500B
|
Power Supply
|
380V 50Hz
|
|
Input Power
|
2.2Kw
|
Air Pressure
|
0.5~0.8MPa
|
|
Motor Rotary Speed
|
2800r/min
|
Saw Blade Specification
|
Φ500*Φ30*96
|
|
Feeding Length
|
3~380mm
|
Cutting Width*Height
|
140*200mm
|
|
Overall Dimension
|
6000*1770*1840mm
|
Weight
|
About 600Kg
|
1.Used for aluminum corner connector cutting.
2.Imported carbide saw blade is of accurate processing and high efficiency.
3.Only one time clamping,can achieve 6 meters corner section bar continuous cutting.
4.The use of imported control system,control system adopts the man-machine interface,high accuracy.
5.Imported carbide saw blade is of accurate processing and high efficiency.
6.Feeding motion using linear motion bearing small movement resistance of high precision.
7.Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
8.Work clamping,cutting and uses the pneumatic control system,convenient operation,safely and reliability,high productively.
Name: Press button
Brand: Omron
Original: Japan
Name: low-voltage apparatus
Brand: Schneider
Original: France
Name: Motor
Brand: Zhenyang
Pure copper motor,2.2KW
Name: solenoid valve
Brand: STNC
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4 How is Aluminum Window Door Corner Key Cutting Saw Machine guarantee?
4.1. Aluminum Window Door Corner Key Cutting Saw Machine warrenty period is 14 months after BL time;
4.2.12 hours technical support feedback;
4.3. Own window factory supply window fabrication support;
4.4. Own machining factory, which can control the spare parts quality at high quality;
4.5. Own accessories warehouse and user can enjoy the agent price.
5 How is our package?
Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
6 Why is price higher than other supplier?
6.1. We have our own machining factory and the high quality technical quality is our aim;
6.2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
6.3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
6.4. Our warrenty period is 14 months after BL time. It can support the new comer client going well in the beginning time.
