Product Details:
Payment & Shipping Terms:
|
| CNC Aluminum Window Corner Crimping Machine: | CNC Aluminum Window Four Head Corner Crimping Machine | Aluminium Four Head Window Door Processing Crimping Machine: | CNC Aluminium Four Head Window Door Processing Crimping Machine |
|---|---|---|---|
| Aluminum Window Machine Four Head Corner Crimping Machine: | Aluminum Window Machine CNC Four Head Corner Crimping Machine | Max. Frame Size: | 1800mm*3000mm |
| Min Frame Size: | 480mm*480mm | Height: | 93mm |
| Aluminum Window Corner Crimping Machine: | Aluminum Window Four Head Corner Crimping Machine | ||
| High Light: | aluminium fabrication machinery,aluminum milling machine |
||

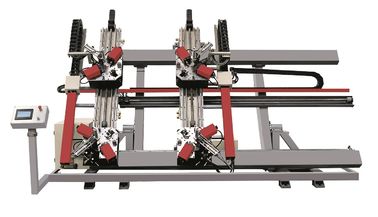

Stable Operation Corner Crimping Machine For Aluminium Profiles , Aluminium Corner Crimper
| Packaging Details: | Aluminium Four Head Window Door Processing Crimping Machine 1.Simple stretch film packaging; 2.Professional export wooden packing. |
|---|---|
| Delivery Detail: | Shipped in 20 days after payment |
Function:
Aluminum Window Fabricating Machine, used for combining the 90° corner of aluminum window and door. One time four corner crimped.
Features:
Automatic hydraulic crimping of all 4 corners in one operation.
The crimping heads can be positioned exactly by a 3-axis control (both vertical axis are
working synchronously)
Depth of each crimping head is individually adjustable.
Vertical configuration of the machinery facilities enormously the handling of the
pre-assembled and completely crimped elements.
The imported controlling CNC system with high quality ensures the speed and accuracy.
With servo system to monitor the crimping strength, realizing four corner automatic crimping to ensure the precision.
Ball screw ensure moving precision.
Crimping Knife is adjusted front/back, left/right direction to meet for different size of profile.
CNC control system is combined with servo system, to increase the control precision of machine’s operation.
Control System:Misubishi Servo Motor:Taiwan TECO Touch Screen:Weilun Liner Bearing: Korean Taijing Screw Ball: Taiwang TBI Oil Tank DeweiButtion: Schneider
Main Technical Parameter:
| Model | CLM4S-100*1800*3000 |
| Power Supply | 380V 50Hz |
| Rating Power | 7.5Kw |
| Rating oil pressure | 15MPa |
| Air Pressure | 0.5~0.8MPa |
| Air consumption | 0.45Lonce |
| Capability of oil box | 60L |
| Corner crimping casing movement distance | 0-50mm |
| Max. frame dimension | 1800mm*3000mm |
| Min. frame dimension | 480mm*480mm |
| Profile width | 93mm |
| Tolerance of diagonal | ≤1mm |
| Tolerance of connection seam | ≤0.15mm |
| Overall Dimension | 4700*2200*2500mm |
| Weight | About 2500Kg |
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4 How is Aluminium Four Head Window Door Processing Crimping Machine guarantee?
4.1. Aluminium Four Head Window Door Processing Crimping Machine warrenty period is 14 months after BL time;
4.2.12 hours technical support feedback;
4.3. Own window factory supply window fabrication support;
4.4. Own machining factory, which can control the spare parts quality at high quality;
4.5. Own accessories warehouse and user can enjoy the agent price.
5 How is our package?
Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
6 Why is price higher than other supplier?
6.1. We have our own machining factory and the high quality technical quality is our aim;
6.2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
6.3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
6.4. Our warrenty period is 14 months after BL time. It can support the new comer client going well in the beginning time.
