Product Details:
Payment & Shipping Terms:
|
| CNC Aluminum Window Corner Crimping Machine: | CNC Aluminum Window Four Head Corner Crimping Machine | Aluminium Four Head Window Door Processing Crimping Machine: | CNC Aluminium Four Head Window Door Processing Crimping Machine |
|---|---|---|---|
| Aluminum Window Machine Four Head Corner Crimping Machine: | Aluminum Window Machine CNC Four Head Corner Crimping Machine | Max. Frame Size: | 1800mm*3000mm |
| Min Frame Size: | 480mm*480mm | Height: | 93mm |
| Aluminum Window Corner Crimping Machine: | Aluminum Window Four Head Corner Crimping Machine | ||
| High Light: | aluminium fabrication machinery,aluminium window machine |
||

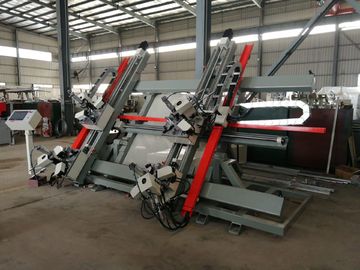

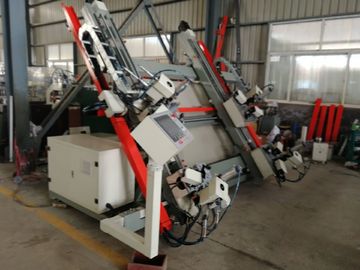

Four Head aluminium corner crimping machine , CNC aluminum window corner crimping machine
| Packaging Details: | Aluminium Four Head Window Door Processing Crimping Machine 1.Simple stretch film packaging; 2.Professional export wooden packing. |
|---|---|
| Delivery Detail: | Shipped in 20 days after payment |
| Equipment Description |
Main Feature:
1.Use for corner punching combination of aluminum window&door,four corners connecting at one time is available.
2.Clamping device can auto move forward/backward,making the operation convenient.
3.The frame is specially jointed by steel with high quality and special process.
4.The CNC system imported from MTSUBISHI JANPAN,with high quality ensures the speed and accuracy.
5.The moment control function of the service system can auto-press the four corners ensuring the processing effect.
6.The corner-crimping blade can be adjusted according to the requirement of different profile.
7.One time corner crimping can control the seam and plane,make the quality foresight.
8.The control system and servo system make the connect no seam and improve the control accuracy.
Parameter:
| Voltage: | 380V/220V |
| Frequency: | 7.5 Kw |
| Oil Pressure: | 15 Mpa |
| Air Pressure: | 0.5-0.8 Mpa |
| Air Consumption: | 0.45 L once |
| Oil Tank Volume: | 60L |
| Crimping Cylinder Move Distance: | 0-50mm |
| Max. Frame Size: | 1800 mm×3000 mm |
| Min. Frame Size: | 480 mm×480 mm |
| Height: | 93mm |
| Cross Distance Tolerance: | ≤1mm |
| Corner Gap Tolerance: | ≤0.15mm |
| Overall Size: | 4700×2200×2500mm |
| Weight: | 2500Kg |
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4 How is Aluminium Four Head Window Door Processing Crimping Machine guarantee?
4.1. Aluminium Four Head Window Door Processing Crimping Machine warrenty period is 14 months after BL time;
4.2.12 hours technical support feedback;
4.3. Own window factory supply window fabrication support;
4.4. Own machining factory, which can control the spare parts quality at high quality;
4.5. Own accessories warehouse and user can enjoy the agent price.
5 How is our package?
Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
6 Why is price higher than other supplier?
6.1. We have our own machining factory and the high quality technical quality is our aim;
6.2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
6.3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
6.4. Our warrenty period is 14 months after BL time. It can support the new comer client going well in the beginning time.
