Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine

China Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine supplier
Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine supplier Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine supplier Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine supplier

Large Image :  Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine

Product Details:

Place of Origin: CHINA
Brand Name: SAINT BEST
Certification: CE/ISO9001
Model Number: CLM2A-100X3500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Aluminum Window Two Head Corner Crimping machine
Price: Two-Point Corner Crimping Machine
Packaging Details: Wooden Case or customized
Delivery Time: 15~30days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 48Sets/Month Aluminum Window Double-Head Corner Combining Machine
Contact Now
Detailed Product Description
Aluminum Window Automatic Two Head Corner Crimping Machine: Aluminum Window Corner Crimper Aluminium Window Door Fabrication Machine: Aluminum Corner Crimper
Two-point Crimping Machine: Aluminum Window Two-Point Crimping Machine Max. Frame Size: 1800mm*3000mm
Min Frame Size: 480mm*480mm Max Height: 120mm
Double-head Corner Combining Machine: Aluminum Window Double-Head Corner Combining Machine
High Light:

aluminium window machine

,

aluminum milling machine

Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine

Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: CLM2A-100X3500
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Products: Aluminum door window automatic two head corner crimping machine
  • Color: Your needs
  • power: 7.5 Kw
  • Power supply: 380v/50Hz
  • Air pressure: 0.5~0.8Mpa
  • Rating oil pressure: 15 Mpa
  • Max frame dimension: 1800 mm*3500 mm
  • Min frame dimension: 480 mm*180 mm
  • Profile width: 95mm
  • Usage: aluminum window corner combining

Packaging & Delivery

Packaging Details: 1 set in one free-fumigation wooden case for Aluminum door window automatic two head corner crimping machine
Delivery Detail: 15 working days

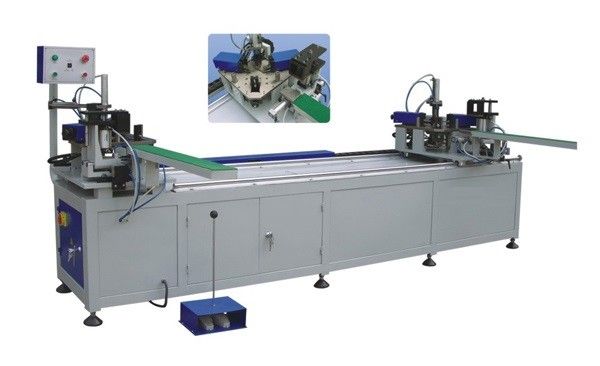

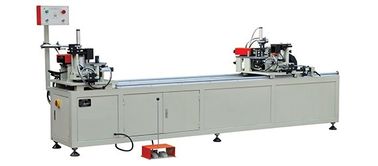

Aluminum door window automatic two head corner crimping machine

Door Fabrication Aluminium Window Machinery , Two Point Crimping MachineDoor Fabrication Aluminium Window Machinery , Two Point Crimping Machine

Equipment Features

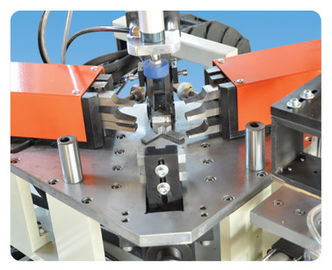

Aluminum door window automatic two head corner crimping machine

1. Used for corner punching and riveting combination of aluminum window & door.

Two corner crimping at one time

2. Connecting of two corners at one time is available. Clamping device can auto move forward/backward, right and left, made the operation convenient.

3. The linear movement pair with high accuracy ensures precision of the corner crimping.

4. Adjustable locating device and the corner-crimping casing are suitable for various section and size processing.Aluminum Window Automatic Two Head Corner Crimping Machine

Main Specification and Technical Parameter

Model CLM2A-100X3500
Input power 1.5kw
Power supply 380v/50Hz
Air pressure 0.5~0.8 MPa
Rated pressure 15 MPa
Capability of oil box 25L
Mx Profile Height 120mm
Max Processing frame size 3500mm
Overall dimension 4500*2200*1700
Weight 1500kg




Related Products >>

Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine



Our Service
Door Fabrication Aluminium Window Machinery , Two Point Crimping Machine

Pre-sale service

●Free contact for the most suitable machine
●Free professional design for each customer especially.

After sale service

●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

Payment
●T/T, 30% deposit by T/T,70% payment before shipment.
●Western Union or Paypal.

Our Factory
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.


Saint Best Group Factory Details:

+ Our factory has two large fabricating factories;

+ Our factory has our own office building and staff apartment;

+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;

+ Any more details, welcome to contact us our customer service department at any time on line.


FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines


3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.



4 How is Aluminium Two Head Window Door Processing Crimping Machine guarantee?

4.1. Aluminium Two Head Window Door Processing Crimping Machine warrenty period is 14 months after BL time;

4.2.12 hours technical support feedback;

4.3. Own window factory supply window fabrication support;

4.4. Own machining factory, which can control the spare parts quality at high quality;

4.5. Own accessories warehouse and user can enjoy the agent price.



5 How is our package?

 Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.



6 Why is price higher than other supplier?

6.1. We have our own machining factory and the high quality technical quality is our aim;

6.2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;

6.3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;

6.4. Our warrenty period is 14 months after BL time. It can support the new comer client going well in the beginning time.
