Product Details:
Payment & Shipping Terms:
|
Aluminum Profile CNC Copy Routing Machine: | Aluminum Profile CNC Copy Router | Aluminum Profile CNC Copy Router And Drilling Machine: | Aluminum Profile CNC Milling And Drilling Machine |
---|---|---|---|
Aluminium Window Machinery: | CNC Milling Machine For Aluminum Profile | X Stroke: | 1200mm |
Y Stroke: | 250mm | Z Stroke: | 250mm |
Aluminium Corner Hydraulic Crimping Machine: | CNC Milling Machine For Aluminum Profile | ||
High Light: | aluminium fabrication machinery,aluminium window machine |
Router Cnc Aluminum Milling Machine Drilling For Window Door Manufactuere
Packaging Details: | wooden cases for servo cnc head milling machine |
---|---|
Delivery Detail: | Shipped in 15 days after payment |

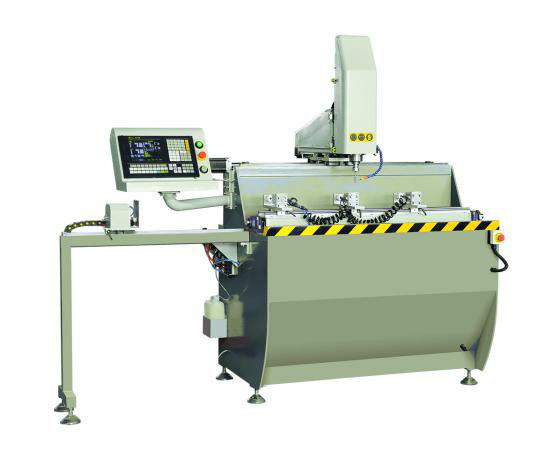

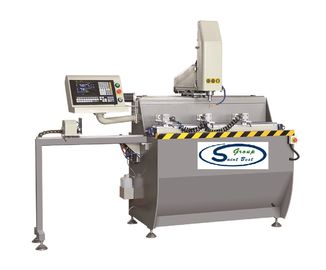

aluminum window cnc milling machine for holes
1.Used for aluminum and PVC profiles all kinds of holes drilling 2. Standard triaxial CNC system 3. Work table can automatic 0-90° tilting. One time profile loading, two sides processing.Aluminum profile CNC copy router and drilling machine |
Specification: cnc copy router machine for aluminum profile
1. Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.cnc router for aluminium profile;window door milling and drilling machine.
2. Adopting high precision linear guide, ball screw, gear rack and imported servo motor to ensure the smooth movement, with high positioning and processing accuracy
3. Adopt imported high speed spindle, stable and low noise, high cutting ability and high reliability.
4. Tool cooling: according to the processing procedures, automatic spray cooling
5. Rotatable worktable can be arbitrary conversion between three degrees as -90 degree, 0 degree and +90 degree, to meet one time clamping can complete the three surface milling. When processing the deep hole (special shaped hole), turning worktable to process deep holes. High efficiency and high precision.
6. Adopt Germany PA CNC system, applicable to a wide range of processing
7. By using program software to automatically transform and process G code: easy operation: high efficiency and low labor intensity.
Technical Parameter: cnc copy router machine for aluminum profile
X-axis stroke | 1000mm |
Y-axis stroke | 300mm |
Z-axis stroke | 280mm |
X-axis feed rate | 0~30m/min |
Y-axis feed rate | 0~15m/min |
Z-axis feed rate | 0~15m/min |
Voltage | 380V/50Hz |
Air source | 0.5~0.8MPa |
Motor Power | 7.5kw |
Fixture quantity | 2 |
Spindle speed / Motor | 18000rpm / 4.5Kw |
Worktable position | -90°, 0°, +90° |
Handle type | ER32-8 |
Processing size range (WxHxL) | 120×90×1000mm |
Dimension | 2200×1500×1950mm |
Weight | 650kg |
Equipment Configurations
1.Spindle motor: Italy HSD high speed manual tool changing spindle
2.High quality carbon structural steel welding + casting frame: thermal aging stress treatment, precision machining
3.Guide rail: X, Y, Z axis are using high precision linear guide rail
4.Y, Z axis transmission: high precision ball screw drive
5.Working fixture: 2 sets of pneumatic clamping fixture, the two working areas of the workpiece on the interactive
6.Drive system: a full digital AC servo drive system
7.Spray cooling system: can be used together with the processing procedures
8.Professional industrial control operating system
9.Manual pulse generator, convenient for alignment and measurement of processing origin
10.Program: can be online or offline programming
Technical Parameter
Model | CLXF-CNC-1200 |
Power supply | 380V 50Hz |
Input power | 3Kw |
Air pressure | 0.5~0.6MPa |
X-axis speed | 1200mm |
Y-axis speed | 250mm |
Z-axis speed | 250mm |
Processing range | 1000*100*200mm |
Handle type | ER25*Φ8 |
Overall dimension | 2500*1500*1900mm |
Weight | About 700Kg |
Main Accessory |
PLC | SIEMENS, OMRON,Taiwan Delta |
Solenoid valve | Germany FESTO |
Electrical Button and Switcher | Schneider |
Temperature Controller | OMRON |
Motor | DEDONG Zhejiang |
AC Contactor and Circuit Breaker | Schneider |
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4 How is Aluminum Profile CNC Copy Routing Machine guarantee?
4.1. Aluminum profile CNC Milling and drilling machine warrenty period is 14 months after BL time;
4.2.12 hours technical support feedback;
4.3. Own window factory supply window fabrication support;
4.4. Own machining factory, which can control the spare parts quality at high quality;
4.5. Own accessories warehouse and user can enjoy the agent price.
5 How is our package?
Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
6 Why is price higher than other supplier?
6.1. We have our own machining factory and the high quality technical quality is our aim;
6.2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
6.3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
6.4. Our warrenty period is 14 months after BL time. It can support the new comer client going well in the beginning time.
