Product Details:
Payment & Shipping Terms:
|
| Aluminium Window Multi Spindle Drilling Machine: | Aluminum Profile Multi Spindle Drilling Machine For Curtain Wall | Aluminum Profile Multi Head Drilling Machine: | Aluminum Profile Drilling Machine |
|---|---|---|---|
| Six Head Drilling Machine: | Four Head Drilling Machine For Aluminum Profile | Max. Processing Profile Section Size: | 250*250mm |
| Max. Drilling Hole Diameter:: | 13mm | Drilling Head Feeding Travel: | 125mm |
| Curtain Wall Drilling Machinery: | Multi-head Combination Drilling Machine For Aluminum Profile | ||
| High Light: | aluminium fabrication machinery,aluminum milling machine |
||
| Packaging Details: | Standard export paking for High efficiency Aluminum profile Multi Head Drilling Machine |
|---|---|
| Delivery Detail: | 15days after receive the advance payment |

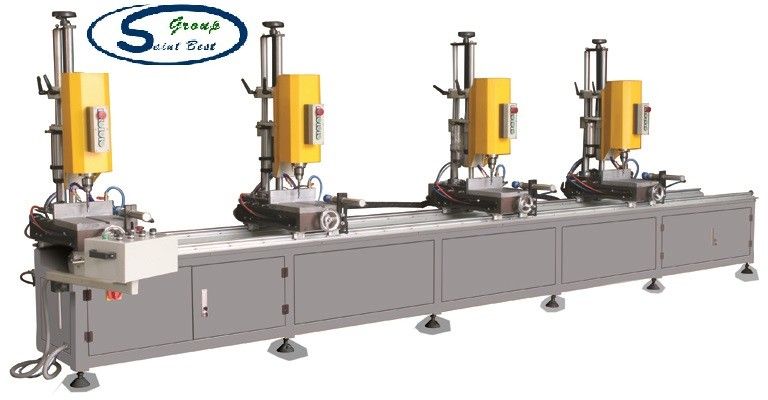

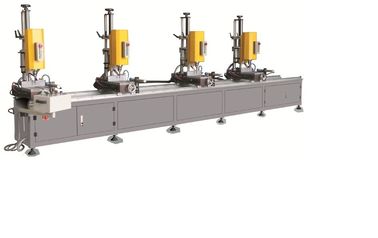

High efficiency Aluminum profile Multi Head Drilling Machine
| Equipment configuration |
Features:
China supplier aluminium window Multi Spindle Drilling Machine
1. Used for drilling holes on aluminum profiles and curtain wall profiles, expecially apply for long workpieces and mass production.
2. The processing Max. profile section size is 250*250mm, and the max. processing length is 5000mm.
3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
4. Feeding system adopts hydraulic-damping cylinder, which ensures a smooth feeding.
5. Imported Schneider PLC control system with steady capability.
Parameter:
| Model | CLZZ4A-13 |
| Power Supply | 380V 50Hz |
| Cutting Motor Power | 4*0.75kw |
| Max Drilling Hole Diameter | 13mm |
| Max. Distance Between Two Drilling Holes | 5000mm |
| Min. Distance Between Each Group Holes | 300mm |
| Power Unit Quantity | 4 |
| Max. Moving Distance at Horizontal Direction of Drilling Head | 120mm |
| Moving Distance at Vertical Direction | 150mm |
| Worktable Size (L*W) | 300*300mm |
| Drilling Head Feeding Travel | 125mm |
| Feeding Pressure | 0.5~0.8MPa |
| Max. Processing Profile Section Size | 250*250mm |
| Overall Dimension(L*W*H) | 5500*1100*1800mm |
| Weight | about 880kg |
●Free contact for the most suitable machine
●Free professional design for each customer especially.
●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Saint Best Group Factory Details:
+ Our factory has two large fabricating factories;
+ Our factory has our own office building and staff apartment;
+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;
+ Any more details, welcome to contact us our customer service department at any time on line.
Aftersale service
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within TWELVE(12) months, the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
WHY YOU CHOOES US Question AND Answer
1.Question:Are your manufacture
Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.
2.Question:What’s the costomer service ?
Answer
1).reply within 12 hour
2).deliver max. days within 15 days (If some machines, such as the lock hole milling machine,end milling machine,etc. this is small model, we have in store, and can delivery for you soon within 3-5 days after get your deposit)
3).one to one service
4).24 hours for after -sale serive
5).more than 15 years experience in this field
6).fluent english ,communication barrier free
3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 2 years.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).two years quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4.Question:if our price is higher than another company or factories ?
Answer:
plaese check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years.
belive you will chooes the same value of the machine, not cheaper equipement
5.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
6.Question:How's the payment ?
Answer
Telegraphic Transfer(T/T). or L/C. (If you want by west union, it is also ok.)
Contact Us
Contact Us
If you are window fabricator, looking for Aluminum profile CNC Milling and drilling machine,
If you have interest to set up window production line as your new business,
Or you have any questions about window machine,
