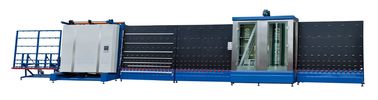

Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm

China Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm supplier
Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm supplier Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm supplier Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm supplier Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm supplier

Large Image :  Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm

Product Details:

Place of Origin: CHINA
Brand Name: SAINT BEST
Certification: CE/ISO9001
Model Number: SBT-LB2550W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Hollow Glass Automatic Production Line
Price: Insulated Glass Production Line with Automatic Glass Sealing Robot
Packaging Details: Wooden Case or customized;Automatic Insulating Glass Line
Delivery Time: 15~30days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 48Sets/Month Automatic Double Glazing Line
Contact Now
Detailed Product Description
Insulated Glass Production Line: Insulated Glass Machine Insulating Glass Machine: Insulating Glass Production Line
Max Glass Size: 2500x5000mm Max Thickness: 60mm
Double Glazing Equipment: Double Glazing Machine Low-e Insulating Glass Machine: Low-e Double Glazing Equipment
High Light:

double glazing glass machine


insulating glass line

Hollow Glass Machinery Vertical Inusating Glass Production Line / Automatic Double Glazed Production Line

Quick Details

  • Condition: New
  • Machine Type: insulating glass production line
  • Production Capacity: 50m/min
  • Place of Origin: Shandong
  • Brand Name: SAINT BEST
  • Model Number: LXZ1600-Z1
  • Voltage: 380V 50-60HZ
  • Power(W): 13.59kw
  • Dimension(L*W*H): 12000x1250x2600
  • Weight: 5000kg,
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: Vertical Insulating Glass Machine Production Line
  • Keyword: insulating glass production line
  • Place of orign:Jinan
  • Input Voltage: 380v
  • Power: 13.59kw
  • Max glass size: 1600*2000 mm
  • Working Speed: 50m/min
  • Min glass size: 300*500mm

Packaging & Delivery

Packaging Details: Vertical Insulating Glass Machine Production Line
After packing wrapping film then load into container
Delivery Detail: Shipped in 30 days after payment



Application and Features >>

PLC control system with whole process, touch-sensitive screen and man-machine interface.

Realize the surface layer of coated glass and LOW-E glass automatically.

The cleaning machine and washer system adopt stainless steel and anticorrosion material with all parts and it has features of super durability.

It adapts to clean 3 to 12 thickness glass, transmission setup of cleaning and drying part is designed automatically.


  • Vertical Insulating Glass Machine Production Line is a completely automatic insulating glass production line (can produce LOW-E insulating glass).
  • Then entire machine adopts the PLC controls the working condition.
  • Adopts the imported vacuum generator and sucker, the suction effect to the glass could be much better.
  • Bases the customers’ different request, the entire machine can be improved and produce the Step IG Unit and three Piece IG production.
  • Full distance automatic changeable frequency speed adjustment, which can save work waiting time and improve production efficiency.
  • When glass is pressed, the front and back part of flat pressing machine will up the glass with lever- type arm and hand system,( mechanical position + mobile sucking system) all this will ensure no malposition.
  • Automatically distinguish the coating side of coated glass and low-E glass.
  • PLC control system with touch screen operation.
  • Machine work and fault dynamic display.

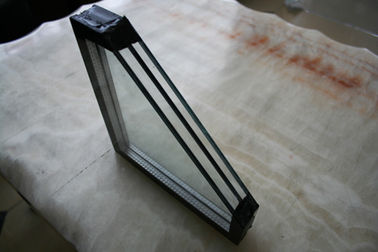

  • Standard double layer IG and three layers IG.
  • Inside panel press, it can produce stepped IG (optional).
  • Frequency control designed for glass transmission.
  • Output: 800 units-single shift 8 hours (double layer IG, size 1m).
  • Panel press open able, easy for maintenance.

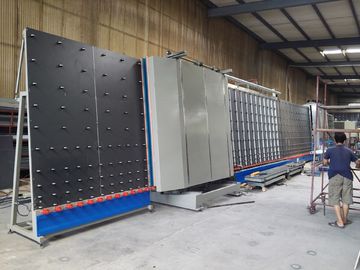

Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm

Procesing details >>
Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mmHollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm

The first part: Input Unit

  • Conveying/transporting glass sheets to washing and drying unit.
  • Automatic drives to pushes the glass into washing and drying unit automatically
  • Realize the surface layer of coated glass and LOW-E glass with a sensor

Washing and Drying Unit

  • stainless steel and anticorrosion material with all parts;
  • Be able to wash Low-E glass;
  • Three pairs of brushes, entire rubber rollers;
  • Drying part guaranteed by strong blower with hot air;
  • Hot water to achieve better cleaness of glass;
  • Washing - drying cabinet and blower with noise reducing devices
  • The speed of transport can be adjusted.

Cleaness Inspecting Unit

  • Also outletting unit after glass washing and drying;
  • With lighting tubes on this unit;
  • Inspecting whether the glass is clean or not;
  • The speed of transport can be adjusted.

Aluminum Spacer Assembly Unit

  • used to load aluminum spacer bar;
  • The first glass goes into the panes pressing unit first;
  • Loading the spacer bar on the second glass;
  • Locating blocks make the placement of spacer easier.

Panel Pressing Unit

  • Press the two sheets of glass with spacer together;
  • Can make step glass;
  • Inputting, outputting, panel pressing, all automatically;
  • Parameters can be changed easily through the touch screen;
  • Press presssure can be adjusted.
  • Capable of doing double and triple glazed units

Tilting Table

  • Glass sheet can be tilted to horizontal position, easy for transporting or unloading.

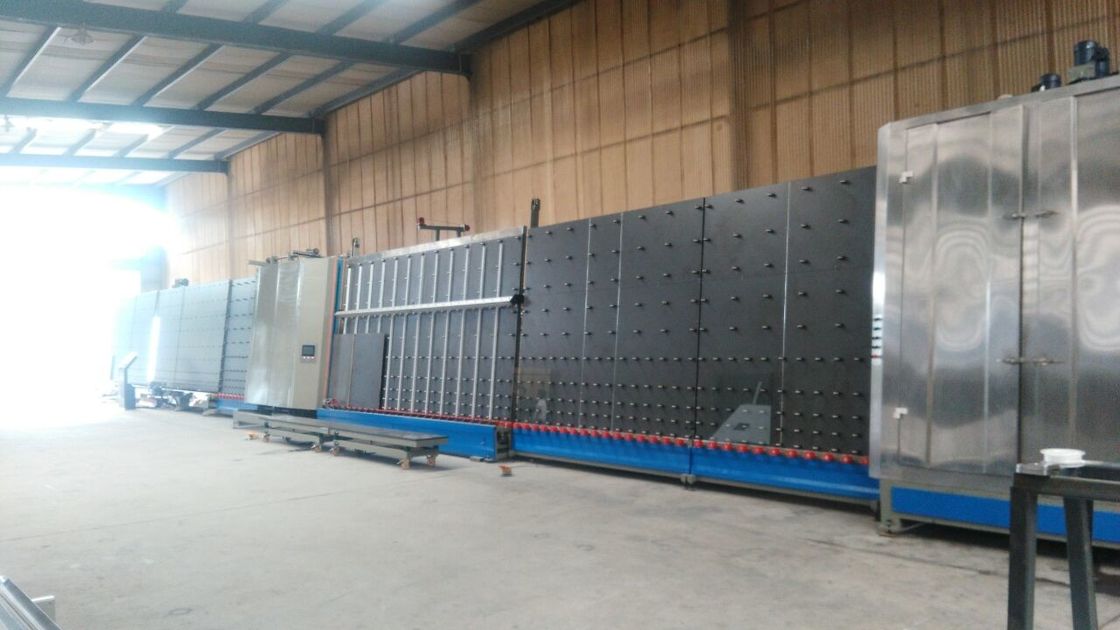

Machine processing >


SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.


Related Products >>
Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm

Packing & Delivery

Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mm

Our Service

Pre-sale service

●Free contact for the most suitable machine
●Free professional design for each customer especially.

After sale service

●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

●T/T, 30% deposit by T/T,70% payment before shipment.
●Western Union or Paypal.

Our Factory
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.

Saint Best Group Factory Details:

+ Our factory has two large fabricating factories;

+ Our factory has our own office building and staff apartment;

+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;

+ Any more details, welcome to contact us our customer service department at any time on line.

Hollow Glass Double Glazing Machinery With PLC Control System , 2500x5000mmCertificates:


1.Question:Are your manufacture?


We are manufacture of the PVC/UPVC/Plastic/Vinyl window door machine, Aluminum window door machines, Insulating glass machines.


2.Question:What’s the customer service?


1).Reply within 12 hours.

2).One to one service.

3).24 hours for after-sale service.

4).More than 15 years experience in this field.

5).Fluent English, communication barrier free.


3.Question:What’s the guarantee?


1).Our guarantee for 2 years.

2).24 hours technical support by email or calling.

3).English manual and video tutorial.

4).2 years quality guarranty for the machine (excluding the consumables).

5).We will provide the consumable parts at an agency price.

6).24 hours on line service each day, free technical support.


4.Question:If your price is higher than another company or factory?


Please check, what is is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years. We believe that you will choose the true quality long lifetime machine, not cheaper machine.


5.Question:How long is the delivery time?


For standard machines, it will take 1-15 days. (Some machines, such as the lock hole milling machine, end milling machine or glass edge polishing machine or butyl extruder machine etc., these common models machines, if you buy separate machine, we can delivery within 1-7 days after get your deposit, it depends on different model; If your order machines are enough a container to load or you order the whole production line machines, we can delivery within 10-15 days.)

For non-standard machines and customized machines according to clients specific requirements, it will take 15 to 30 days. (If the machines that customer ordered are very special, we will take long time to make the machine specially, it will take 15-30 days, this point hope customer can understand, thanks!)


6.Question:How's the payment?


1).Telegraphic Transfer. T/T: 30% T/T deposit, 70% rest balance before shipment or against the original BL scanning. (If customer want to pay little deposit in beginning, for example, some customer want to pay 10% deposit, it is also acceptable; If some customer visit our factory and confirm the order, want to pay some cash as deposit, it is also acceptable).

2).If you want by Western Union or Trade Assurance, it is also OK.


7.Question:What is SAINT BEST GROUP special advantage?


We have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time. Before our machine reach your workshop, if you need we help you to design the drawing that list all machines should how to place in your workshop, we can help you to make the drawing to give suggestion in short time; And if you need we suggest how many squaremeters workshop is betterr, you can tell us your plan production, then we will suggest how many machines you need, and tell you how many squaremeters workshop is better.


8.If I want to use some certificates to pay less tax for importing your machines, can you help me?


Our company can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.
