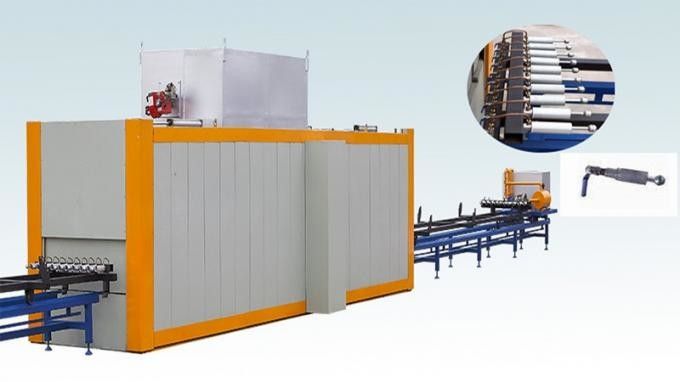

Vacuum wood grain transfer machine
High efficiency, Low cost, Small investment, Big investment return..
Door Wood Grain Transfer Machine
Wood Grain Transfer Machine
Wood Grain Transfer and Powder Coating Line
Wood Grain Transfer Printing Machine (Silicon Membrane)
Wood grain vacuum transfer machine
Function: through heating,transfer wood grain on surface of aluminum profile from raw material
Surface treatment: powder coating, electrophotesis
Desigh features: individual vacuum suction
Raw material: 1. transfer film
2. transfer paper + high temperature plastic bag
Applications:
The wood texture transfer machine combines transfer printing and baking after power spraying together. On one side, profiles are manually sprayed for baking. Afterwards, the semi-finished products can be moved to the the other side manually for wood grain transfer printing.
Technical data:
| Power supply | 380V/50Hz |
| Total power | About 44kw. |
| Daily output | 1MT(8-10hours) |
| Heating method | Electricity, 36kw |
| Work table | 7500x1400mm |
| Oven size | 7680x1520x2000mm |
| Overall dimension | 27000x2100x2400mm |
| Weight | About 4000Kg |
Aluminum wood grain transfer machine
